TSX3710 CABLE ASSEMBLY INSTRUCTION

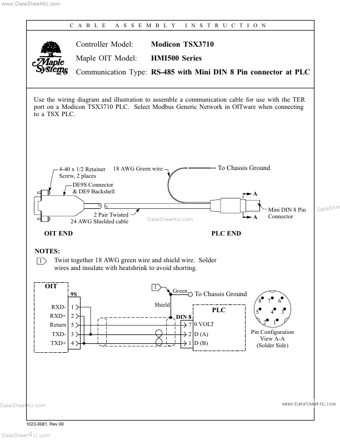

www.DataSheet4U.com C A B L E A S S E M B L Y I N S T R U C T I O N Controller Model: Maple OIT Model: Modicon TSX3710 HMI500 Series Communication Type: RS-485 with Mini DIN 8 Pin connector at PLC Use the wiring diagram and illustration to assemble a communication cable for use with the TER port on a Modicon TSX3710 PLC. Select Modbus Generic Network in OITware when connecting to a TSX PLC. 4-40 x 1/2 Retainer 18 AWG Green wire Screw, 2 places DE9S Connector & DE9 Backshell To Chassis Gr.
