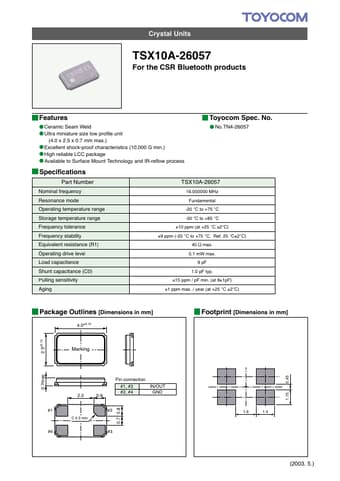

Crystal Units
TSX10A-26057
For the CSR Bluetooth products
Features
Ceramic Seam Weld Ultra miniature size low profile unit (4.0 x 2.5 x 0.7 mm max.) Excellent shock-proof characteristics (10,000 G min.) High reliable LCC package Available to Surface Mount Technology and IR-reflow process
Toyocom Spec. No.
No.TN4-26057
Specifications
Part Number
Nominal frequency Resonance mode Operating temperature range Storage temperature range Frequency tolerance Frequency stability Equivalent resistance (R1) Operating drive level Load capacitance Shunt capacitance (C0) Pulling sensitivity Aging
TSX10A-26057
16.000000 MHz Fundamental -20 °C to +75 °C -30 °C to +85 °C ±10 ppm (at +25 °C ±2°C) ±9 ppm (-20 °C to +75 °C, Ref. 25 °C±2°C) 40 Ω max. 0.1 mW max. 9 pF 1.0 pF typ. ±15 ppm / pF min.
