DLBM-CG121 - A Class 2 Bluetooth module suitable for cellular phone / smart phone applications

Product Overview

Datasheet Details

Part number	DLBM-CG121
Manufacturer	ETC
File Size	318.84 KB
Description	A Class 2 Bluetooth module suitable for cellular phone / smart phone applications
Datasheet	DLBM-CG121 Datasheet
Additional preview pages of the DLBM-CG121 datasheet.

Product details

Description

External Antenna 50 ohm TX,RX,RTS,CTS(9600bps~1.5Mbps) Synchronous Serial Interface for firmware download 8 terminals 6.Power Supply Diagram ANT V D D _1.

Features

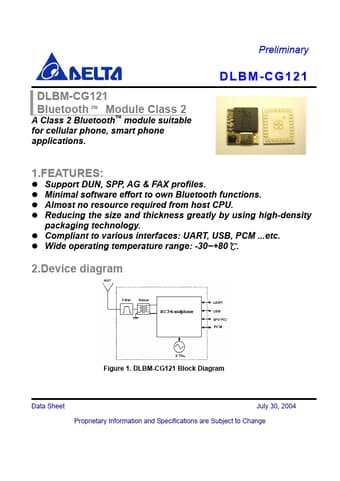

Support DUN, SPP, AG & FAX profiles. Minimal software effort to own Bluetooth functions. Almost no resource required from host CPU. Reducing the size and thickness greatly by using high-density packaging technology. Compliant to various interfaces: UART, USB, PCM etc. Wide operating temperature range: -30~+80℃. 2.Device diagram BC 3H andphone Figure 1. DLBM-CG121 Block Diagram Data Sheet July 30, 2004 Proprietary Information and Specifications are Subject to Change Preliminary DLBM-CG121.
