DLBM-CS220 - (DLBM-CS220 / DLBM-CS221) A Class 2 Bluetooth V1.2 HCI module Suitable

Description

DLBM-CS220 TX,RX,RTS,CTS UART Interface DLBM-CS221 TX,RX DLBM-CS220 None.

1.

Fequency Range 2.

Features

  • z Fully qualified Bluetooth V1.2 module includes RF & BB. z Low cost solution suitable for Cellular, PDA & other high volume consumer products. z Reducing size greatly by combining SOP & SIP technologies. z Smallest size: 6.0.
  • 5.5.
  • 1.7mm(Build-in X’tal) /6.0.
  • 5.5.
  • 1.5mm(Without X’tal) z Compliant to various interfaces: UART, USB, PCM, PIO z No shielding case needed. z Wide operating temperature range: -30~+80¢J . 2.Device diagram ANT Filter Balun UART RF + BB 4Mbit ROM USB SPI/ P.

📥 Download Datasheet

Datasheet Details

Part number DLBM-CS220
Manufacturer Delta Electronics
File Size 119.55 KB
Description (DLBM-CS220 / DLBM-CS221) A Class 2 Bluetooth V1.2 HCI module Suitable
Datasheet download datasheet DLBM-CS220 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DLBM-CG121 A Class 2 Bluetooth module suitable for cellular phone / smart phone applications ETC
DLBM-CR320 A Class 2 V2.0+EDR Bluetooth HCI module suitable for various (mobile phones) applications ETC

Other Datasheets by Delta Electronics

Part Number Description
DLBM-CS221 (DLBM-CS220 / DLBM-CS221) A Class 2 Bluetooth V1.2 HCI module Suitable
DLBM-CS222 Wireless communication module compliant
DLBM-CA120 (DLBM-CA120 / DLBM-CA121) A Class 2 Bluetooth module suitable
DLBM-CA121 (DLBM-CA120 / DLBM-CA121) A Class 2 Bluetooth module suitable
DLBM-CF120 Bluetooth Module Class 2

Full PDF Text Transcription

Click to expand full text

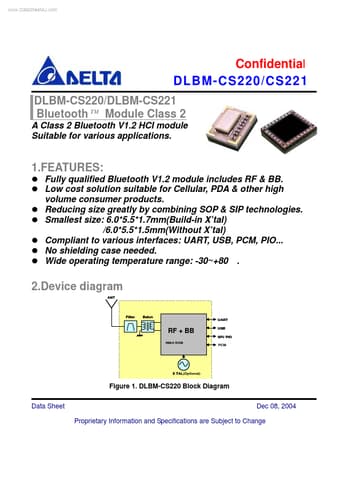

www.DataSheet4U.com Confidential DLBM-CS220/CS221 DLBM-CS220/DLBM-CS221 Bluetooth TM Module Class 2 A Class 2 Bluetooth V1.2 HCI module Suitable for various applications. 1.FEATURES: z Fully qualified Bluetooth V1.2 module includes RF & BB. z Low cost solution suitable for Cellular, PDA & other high volume consumer products. z Reducing size greatly by combining SOP & SIP technologies. z Smallest size: 6.0*5.5*1.7mm(Build-in X’tal) /6.0*5.5*1.5mm(Without X’tal) z Compliant to various interfaces: UART, USB, PCM, PIO... z No shielding case needed. z Wide operating temperature range: -30~+80¢J . 2.Device diagram ANT Filter Balun UART RF + BB 4Mbit ROM USB SPI/ PIO PCM X¡@ TAL TAL(Optional) Figure 1.
