| Part number | DLBM-CA121 |
|---|---|
| Manufacturer | Delta Electronics |
| File Size | 225.45 KB |
| Description | (DLBM-CA120 / DLBM-CA121) A Class 2 Bluetooth module suitable |
| Datasheet |
 DLBM-CA121 Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: DLBM-CA121, DLBM-CA120. Please refer to the document for exact specifications by model. |
|
|

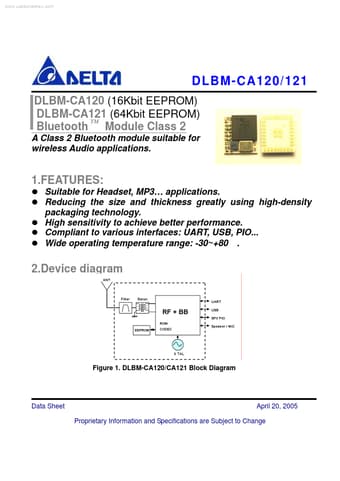

External Antenna 50 ohm TX,RX,RTS,CTS(9600bps~1.5Mbps) Synchronous Serial Interface for firmware download 9 terminals Data Sheet April 20, 2005 Proprietary Information and Specifications are Subject to Change DLBM-CA120/121 7.Power Supply Diagram ANT ¡´ VDD_1.8V BPF Balun EEPROM BC2-Audio VDD_IO VREG_IN X’tal Figure 2. Power Supply Diagram Terminal VDD_1.8V VDD_IO VREG_IN VDD=3.0V NC 2.7 to 3.6V 2.7 to 3.6V VDD=1.8V 1.7 to 1.9V 2.7 to 3.6V NC 8.RF Characteristics Operating Condition: +
