DI-8B47 - Linearized Thermocouple Input Modules

Product Overview

Datasheet Details

Part number	DI-8B47
Manufacturer	ETC
File Size	349.75 KB
Description	Linearized Thermocouple Input Modules

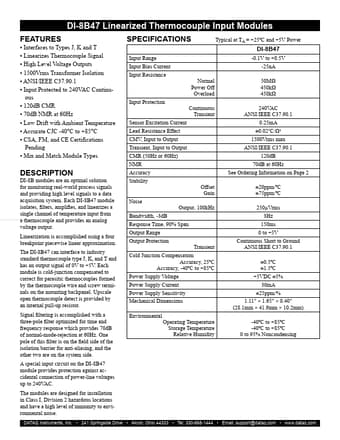

Datasheet	DI-8B47 Datasheet
Additional preview pages of the DI-8B47 datasheet.

Product details

Description

Offset Gain Output, 100kHz Transient Cold Junction Compensation Accuracy, 25ºC Accuracy, -40ºC to +85ºC Power Supply Voltage Power Supply Current Power Supply Sensitivity Mechanical Dimensions Environmental Operating Temperature Storage Temperature Relative Humidity Bandwidth, -3dB Response Time, 90% Span Output Range Output Protection DATAQ Instruments, Inc. 241 Springside Drive Akron, Ohio 44333 Tel: 330-668-1444 Email: support@dataq.com w

Features

Interfaces to Types J, K and T.
Linearizes Thermocouple Signal.
High Level Voltage Outputs.
1500Vrms Transformer Isolation.
ANSI/IEEE C37.90.1.
Input Protected to 240VAC Continuous.
120dB CMR.
70dB NMR at 60Hz.
Low Drift with Ambient Temperature.
Accurate CJC -40°C to +85°C.
CSA, FM, and CE Certifications Pending.
Mix and Match Module Types.
