DI-8B45 - Frequency Input Modules

Product Overview

📥 Download Datasheet

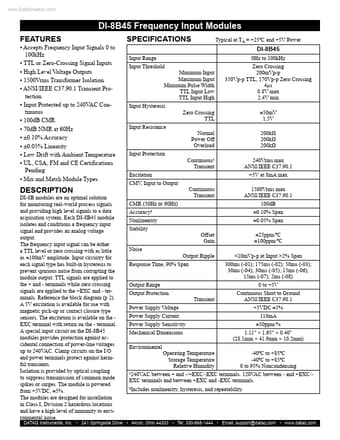

DI-8B45 Frequency Input Modules by ETC - Datasheet Preview — Datasheet preview – DI-8B45

Datasheet Details

Part number	DI-8B45
Manufacturer	ETC
File Size	344.46 KB
Description	Frequency Input Modules
Datasheet	DI-8B45 Datasheet
Additional preview pages of the DI-8B45 datasheet.

Product details

Description

DI-8B modules are an optimal solution for monitoring real-world process signals and providing high level signals to a data acquisition system.

Features

Accepts Frequency Input Signals 0 to 100kHz.
TTL or Zero-Crossing Signal Inputs.
High Level Voltage Outputs.
1500Vrms Transformer Isolation.
ANSI/IEEE C37.90.1 Transient Protection.
Input Protected up to 240VAC Continuous.
100dB CMR.
70dB NMR at 60Hz.
±0.10% Accuracy.
±0.05% Linearity.
Low Drift with Ambient Temperature.
UL, CSA, FM and CE Certifications Pending.
Mix and Match Mo.
