DI-8B35 - Linearized 4-Wire RTD Input Modules

Product Overview

Datasheet Details

Part number	DI-8B35
Manufacturer	ETC
File Size	347.98 KB
Description	Linearized 4-Wire RTD Input Modules
Datasheet	DI-8B35 Datasheet

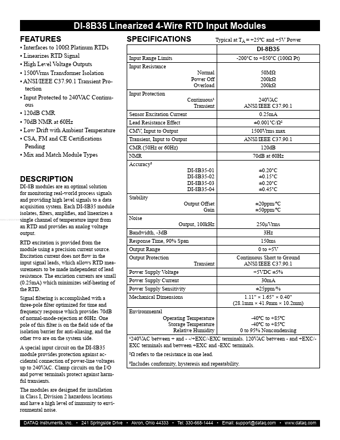

Additional preview pages of the DI-8B35 datasheet.

Product details

Description

DI-8B35-01 DI-8B35-02 DI-8B35-03 DI-8B35-04 Stability Noise Output Offset Gain Output, 100kHz Bandwidth, -3dB Response Time, 90% Span Output Range Output Protection Power Supply Voltage Power Supply Current Power Supply Sensitivity Mechanical Dimensions Environmental Transient Operating Temperature -40ºC to +85ºC Storage Temperature -40ºC to +85ºC Relative Humidity 0 to 95% Noncondensing ¹240VAC between + and - -/+EXC/-EXC terminals.120VAC between - and +EXC/EXC terminals and between +EXC

Features

Interfaces to 100Ω Platinum RTDs.
Linearizes RTD Signal.
High Level Voltage Outputs.
1500Vrms Transformer Isolation.
ANSI/IEEE C37.90.1 Transient Protection.
Input Protected to 240VAC Continuous.
120dB CMR.
70dB NMR at 60Hz.
Low Drift with Ambient Temperature.
CSA, FM and CE Certifications Pending.
Mix and Match Module Types.
