F50L1G41LB-104YG2M, F50L1G41LB 3.3V 1 Gbit SPI-NAND Flash Memory

F50L1G41LB-104YG2M Description

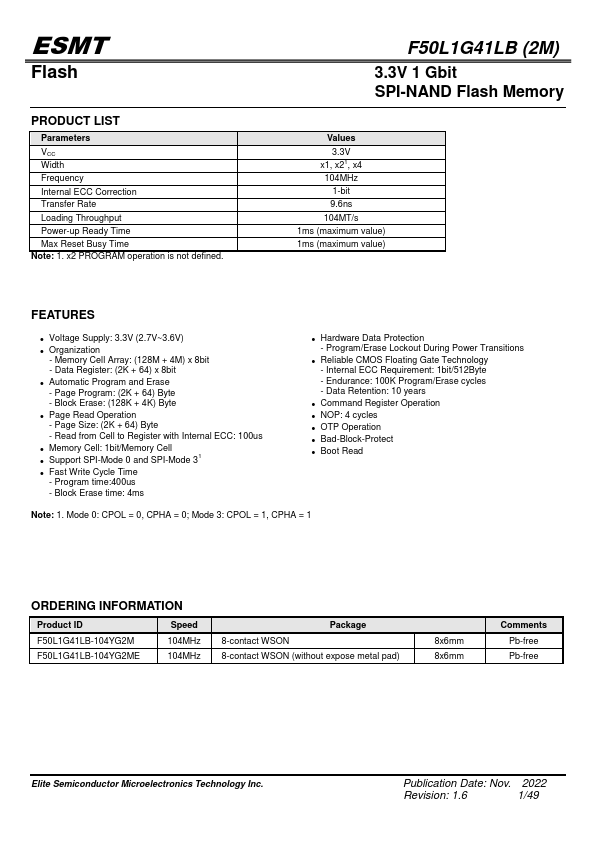

ESMT Flash PRODUCT LIST Parameters VCC Width Frequency Internal ECC Correction Transfer Rate Loading Throughput Power-up Ready Time Max Reset Busy Tim.
The serial electrical interface follows the industry-standard serial peripheral interface (SPI), providing a cost-effective non-volatile memory storag.

F50L1G41LB-104YG2M Features

* Voltage Supply: 3.3V (2.7V~3.6V)
* Organization - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit
* Automatic Program and Erase - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte
* Page Read Operation - Page Size: (2K + 64) Byte - Read from Cell

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: F50L1G41LB-104YG2M, F50L1G41LB. Please refer to the document for exact specifications by model.

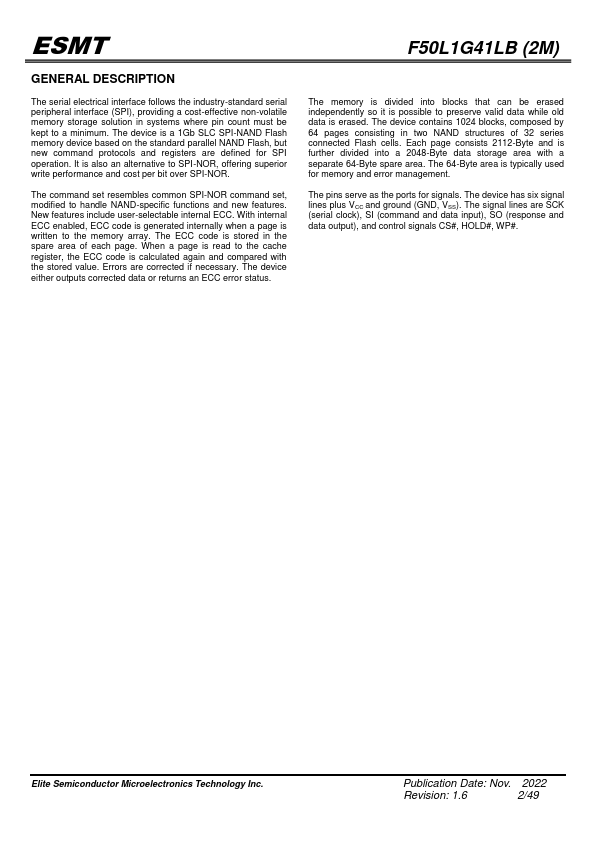

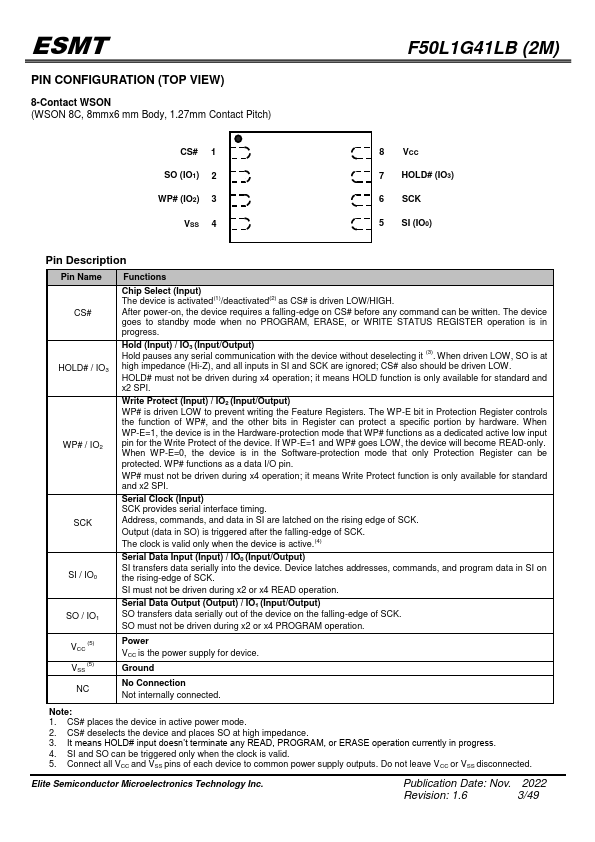

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
F50L1G41LB-104YG2M, F50L1G41LB
Manufacturer
ESMT
File Size
1.47 MB
Datasheet
F50L1G41LB-ESMT.pdf
Description
3.3V 1 Gbit SPI-NAND Flash Memory
Note
This datasheet PDF includes multiple part numbers: F50L1G41LB-104YG2M, F50L1G41LB.
Please refer to the document for exact specifications by model.
