EM6682 - Ultra Low Power 8-pin Microcontroller

Product Overview

EM Microelectronic

Part number	EM6682
Manufacturer	EM Microelectronic
File Size	2.00 MB
Description	Ultra Low Power 8-pin Microcontroller
Datasheet	EM6682 Datasheet

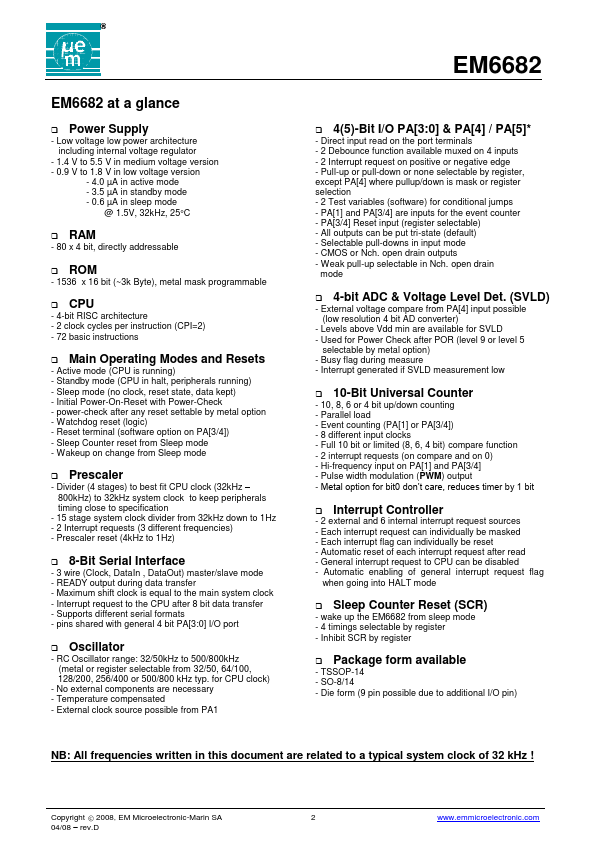

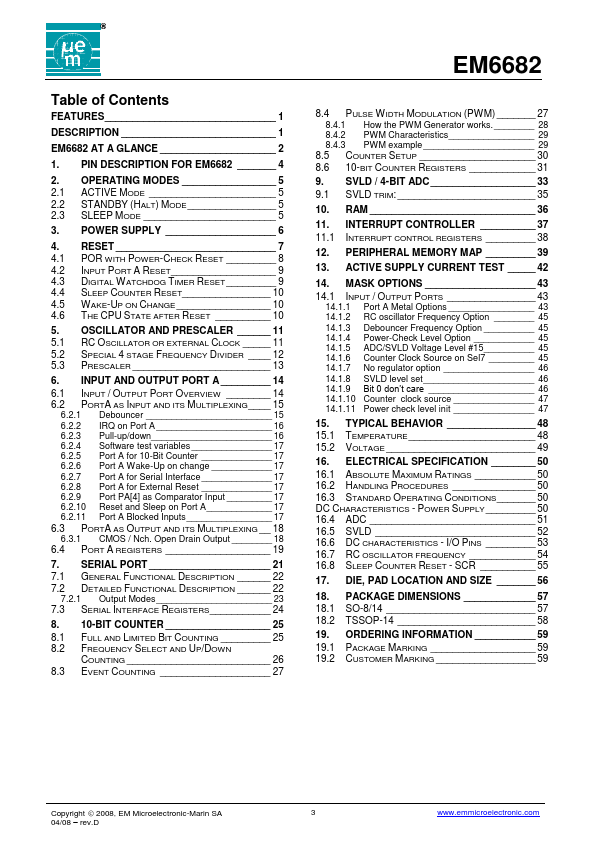

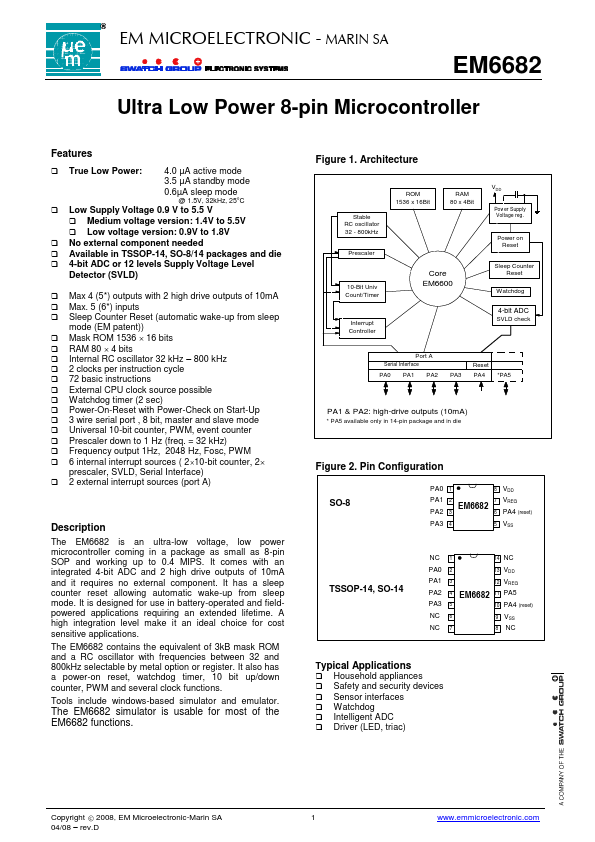

Additional preview pages of the EM6682 datasheet.

The EM6682 is an ultra-low voltage, low power microcontroller coming in a package as small as 8-pin SOP and working up to 0.4 MIPS.

 True Low Power: 4.0 µA active mode 3.5 µA standby mode 0.6µA sleep mode @ 1.5V, 32kHz, 25°C  Low Supply Voltage 0.9 V to 5.5 V  Medium voltage version: 1.4V to 5.5V  Low voltage version: 0.9V to 1.8V  No external component needed  Available in TSSOP-14, SO-8/14 packages and die  4-bit ADC or 12 levels Supply Voltage Level Detector (SVLD)  Max 4 (5.
) outputs with 2 high drive outputs of 10mA  Max. 5 (6.
) inputs  Sleep Counter Reset (automatic wake-up from sleep mode (EM patent).
