EM6605 - 4 bit Microcontroller

Description

The EM66XX series is an advanced single chip low cost, mask programmed CMOS 4-bit microcontroller.

It contains ROM, RAM, watchdog timer, oscillation detection circuit, combined timer / event counter, prescaler, voltage level detector and a number of clock functions.

Features

  • Low Power - typical 4.0µA active mode - typical 2.5µA standby mode - typical 0.3µA sleep mode @ 1.8V, 32kHz, 25 °C.
  • Low Voltage - 1.8 to 5.5V.
  • RC oscillator 30 - 300kHz.
  • buzzer - three tone.
  • ROM - 2k × 16 (Mask Programmed).
  • RAM - 96 × 4 (User Read/Write).
  • 2 clocks per instruction cycle.
  • RISC architecture.
  • 4 software configurable 4-bit ports.
  • Up to 16 inputs (4 ports).
  • Up to 12 outputs (3 ports).

📥 Download Datasheet

Datasheet Details

Part number EM6605
Manufacturer EM Microelectronic
File Size 557.58 KB
Description 4 bit Microcontroller
Datasheet download datasheet EM6605 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EM669325 4M x 32 Low Power SDRAM Etron Technology
EM66932A 4M x 32 Hand-Held Low Power SDRAM Etron Technology
EM60000 Stereo Four Channels 8-Bit Based Sound Processor ELAN Microelectronics Corp
EM60001 Stereo Four Channels 8-Bit Based Sound Processor ELAN Microelectronics
EM60101 Stereo Four Channels 8-Bit Based Sound Processor ELAN Microelectronics

Other Datasheets by EM Microelectronic

Part Number Description
EM6603 Ultra Low Power Multi I/O Microcontroller
EM6604 Ultra Low Power Multi I/O Microcontroller
EM6607 Ultra-low power microcontroller
EM6617 Ultra-low power microcontroller
EM6620 Ultra-low power microcontroller

Full PDF Text Transcription

Click to expand full text

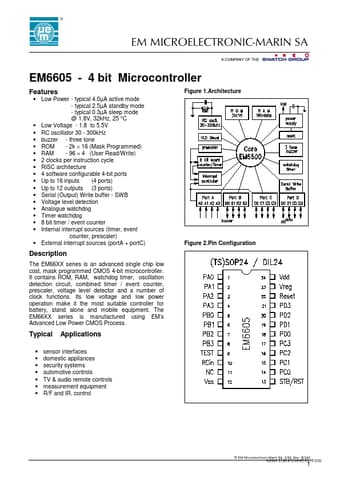

(0 0,&52(/(&7521,&0$5,1 6$ EM6605 - 4 bit Microcontroller Features • Low Power - typical 4.0µA active mode - typical 2.5µA standby mode - typical 0.3µA sleep mode @ 1.8V, 32kHz, 25 °C • Low Voltage - 1.8 to 5.5V • RC oscillator 30 - 300kHz • buzzer - three tone • ROM - 2k × 16 (Mask Programmed) • RAM - 96 × 4 (User Read/Write) • 2 clocks per instruction cycle • RISC architecture • 4 software configurable 4-bit ports • Up to 16 inputs (4 ports) • Up to 12 outputs (3 ports) • Serial (Output) Write buffer - SWB • Voltage level detection • Analogue watchdog • Timer watchdog • 8 bit timer / event counter • Internal interrupt sources (timer, event counter, prescaler) • External interrupt sources (portA + portC) Figure 1.Architecture Figure 2.
