EM6617 - Ultra-low power microcontroller

Product Overview

EM Microelectronic

Part number	EM6617
Manufacturer	EM Microelectronic
File Size	698.04 KB
Description	Ultra-low power microcontroller
Datasheet	EM6617 Datasheet

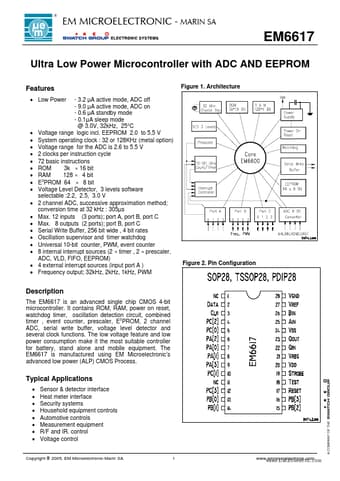

Additional preview pages of the EM6617 datasheet.

The EM6617 is an advanced single chip CMOS 4-bit microcontroller.

Low Power - 3.2 µA active mode, ADC off - 9.0 µA active mode, ADC on - 0.6 µA standby mode - 0.1µA sleep mode @ 3.0V, 32kHz, 25°C Voltage range logic incl. EEPROM 2.0 to 5.5 V System operating clock : 32 or 128KHz (metal option) Voltage range for the ADC is 2.6 to 5.5 V 2 clocks per instruction cycle 72 basic instructions ROM 3k × 16 bit RAM 128 × 4 bit E2PROM 64 × 8 bit Voltage Level Detector, 3 levels software selectable :2.2, 2.5, 3.0 V 2 channel ADC, successive approximation method.
