ELM59498A-S - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

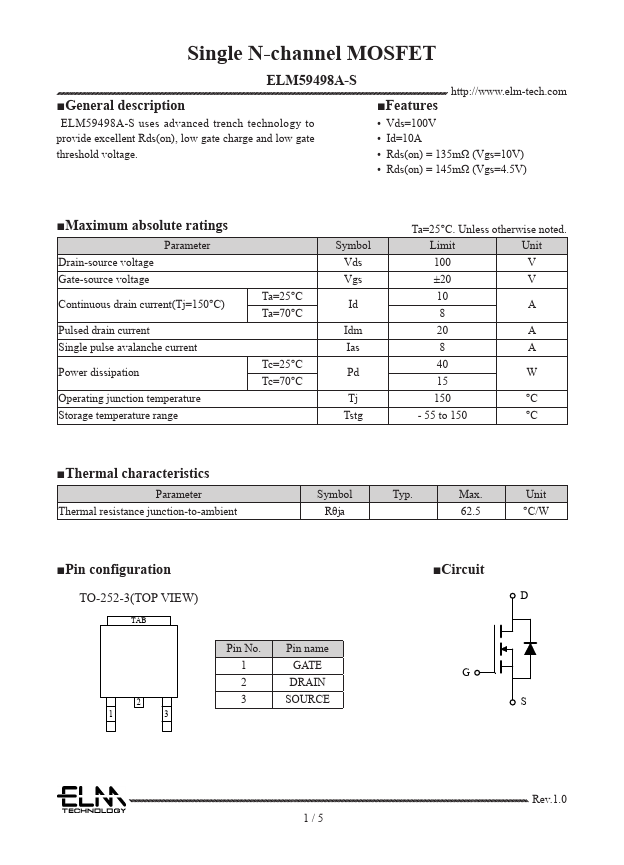

ELM59498A-S Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM59498A-S

Datasheet Details

Part number	ELM59498A-S
Manufacturer	ELM
File Size	778.16 KB
Description	Single N-channel MOSFET
Datasheet	ELM59498A-S Datasheet

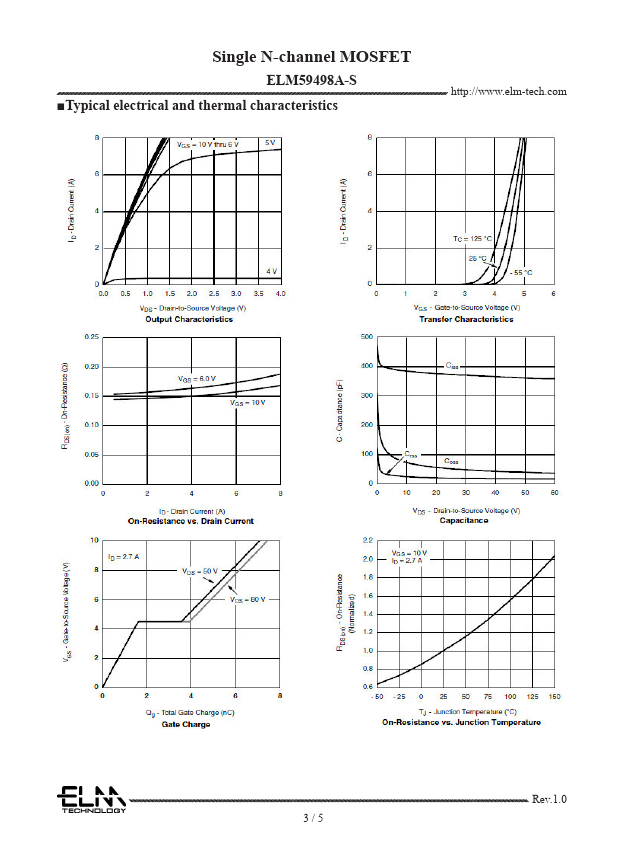

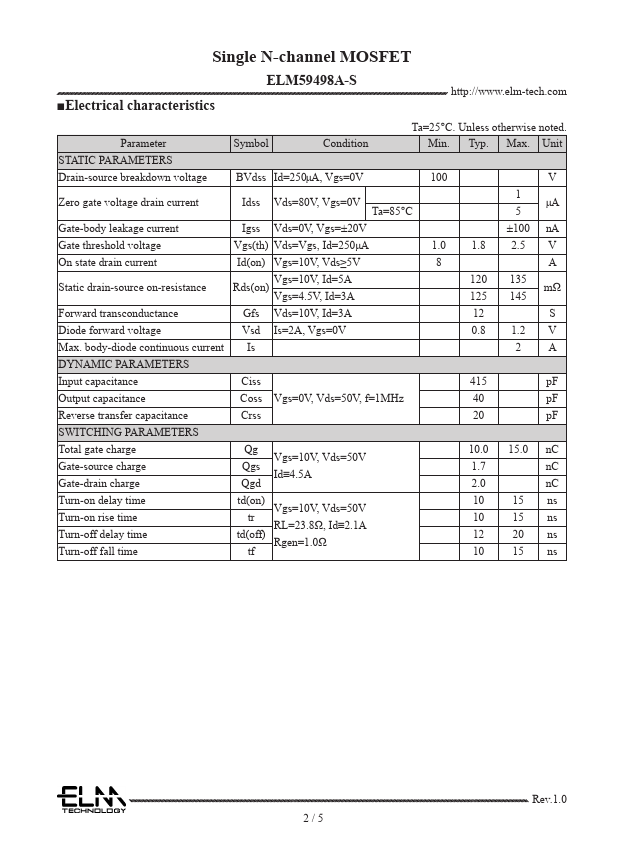

Additional preview pages of the ELM59498A-S datasheet.

Product details

Description

ELM59498A-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Features

Vds=100V.
Id=10A.
Rds(on) = 135mΩ (Vgs=10V).
Rds(on) = 145mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Single pulse avalanche current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vds Vgs Id Idm Ias Pd Tj Tstg Ta=25°C. Unless otherwise noted. Limit Unit 100 V ±20 V 10 A 8 20.
