ELM56332CESA-S - Complementary MOSFET

Product Overview

ELM

Part number	ELM56332CESA-S
Manufacturer	ELM
File Size	1.41 MB
Description	Complementary MOSFET
Datasheet	ELM56332CESA-S Datasheet
Additional preview pages of the ELM56332CESA-S datasheet.

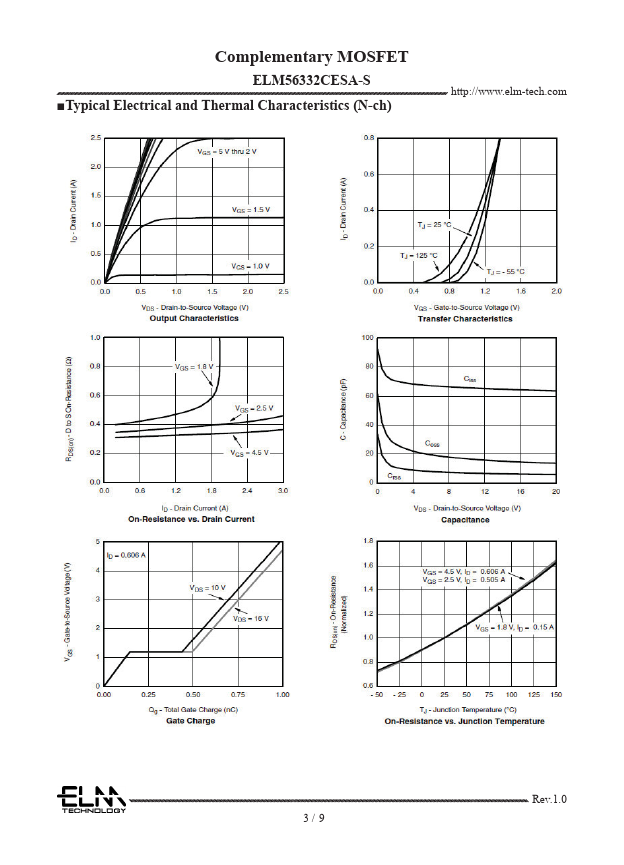

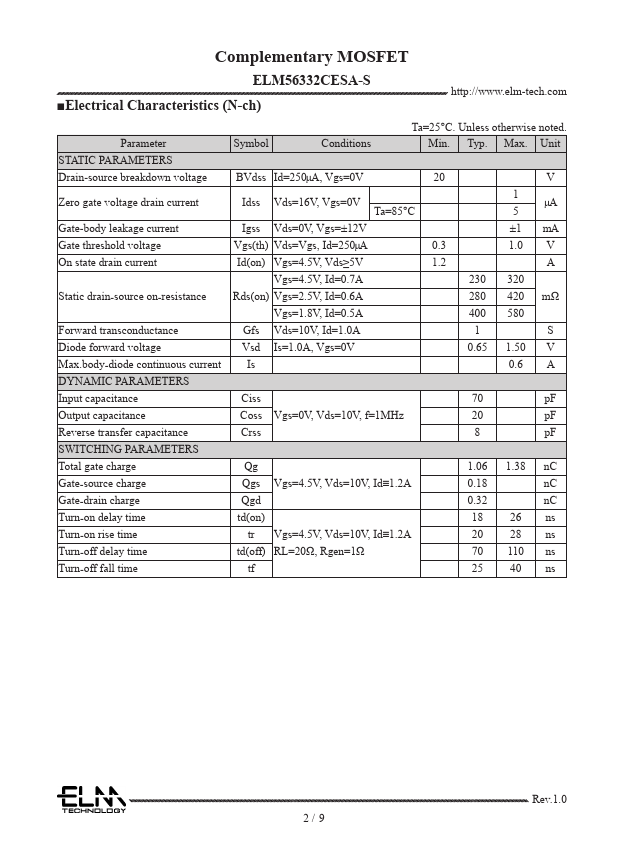

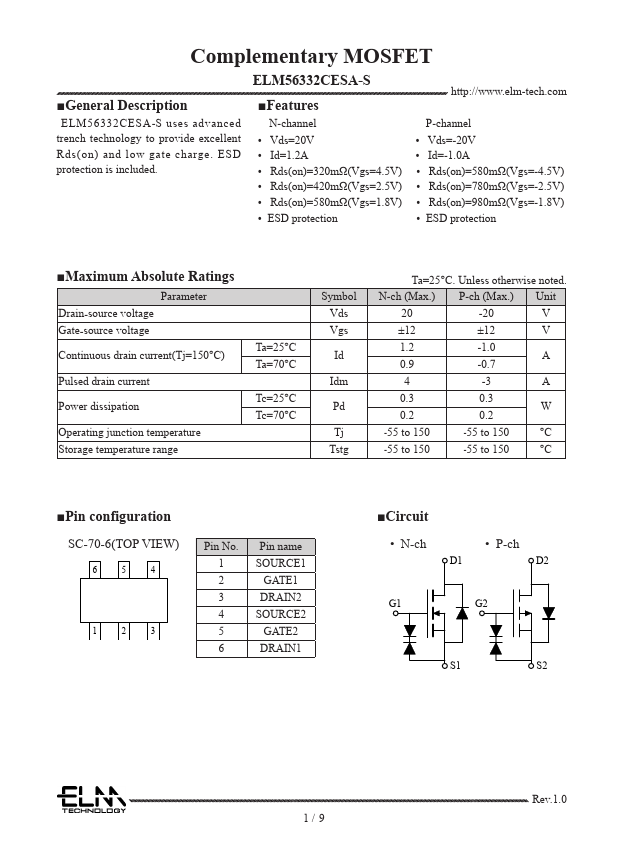

ELM56332CESA-S uses advanced trench technology to provide excellent Rds(on) and low gate charge.

N-channel.
Vds=20V.
Id=1.2A.
Rds(on)=320mΩ(Vgs=4.5V).
Rds(on)=420mΩ(Vgs=2.5V).
Rds(on)=580mΩ(Vgs=1.8V).
ESD protection http://www. elm-tech. com P-channel.
Vds=-20V.
Id=-1.0A.
Rds(on)=580mΩ(Vgs=-4.5V).
Rds(on)=780mΩ(Vgs=-2.5V).
Rds(on)=980mΩ(Vgs=-1.8V).
ESD protection.
Maximum Absolute Ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed.
