ELM56820A-S - Dual N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

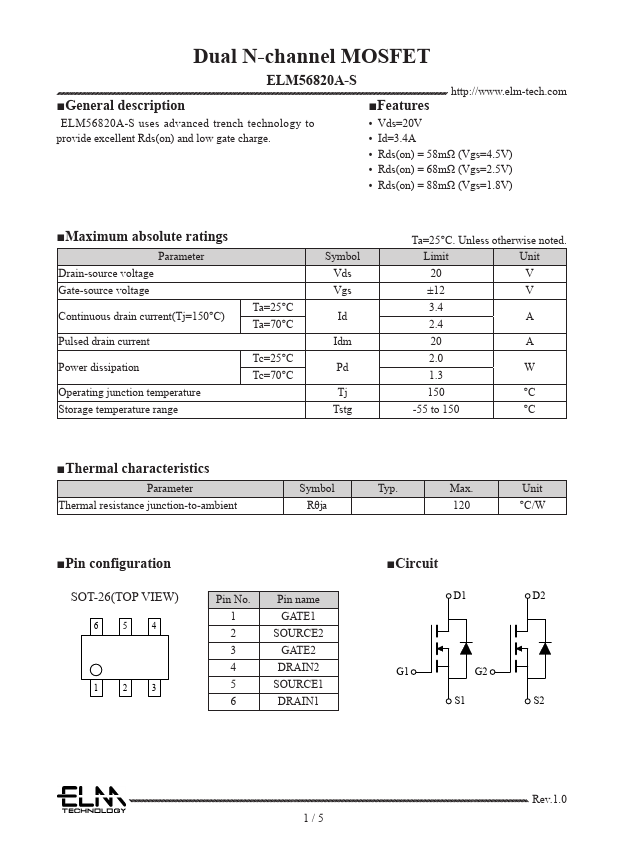

ELM56820A-S Dual N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM56820A-S

Datasheet Details

Part number	ELM56820A-S
Manufacturer	ELM
File Size	856.38 KB
Description	Dual N-channel MOSFET
Datasheet	ELM56820A-S Datasheet

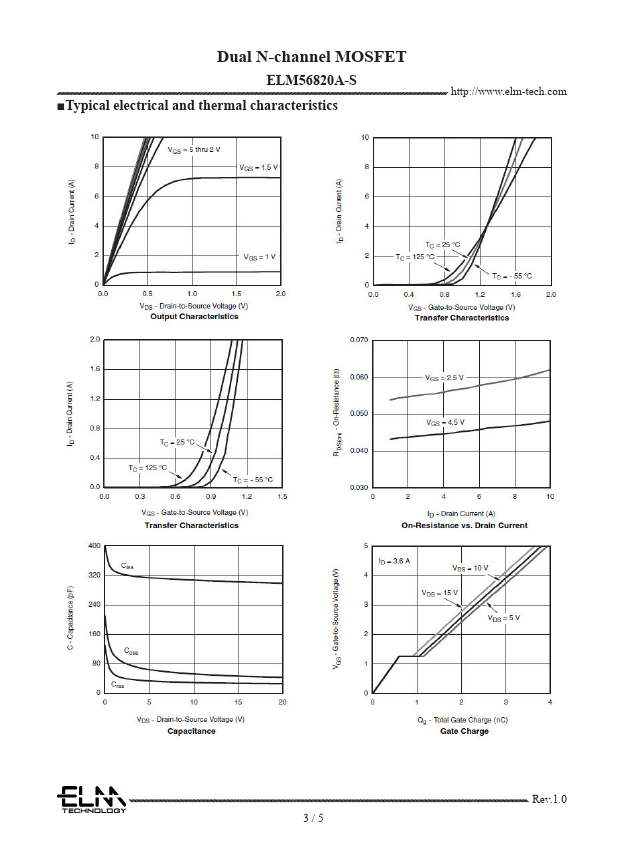

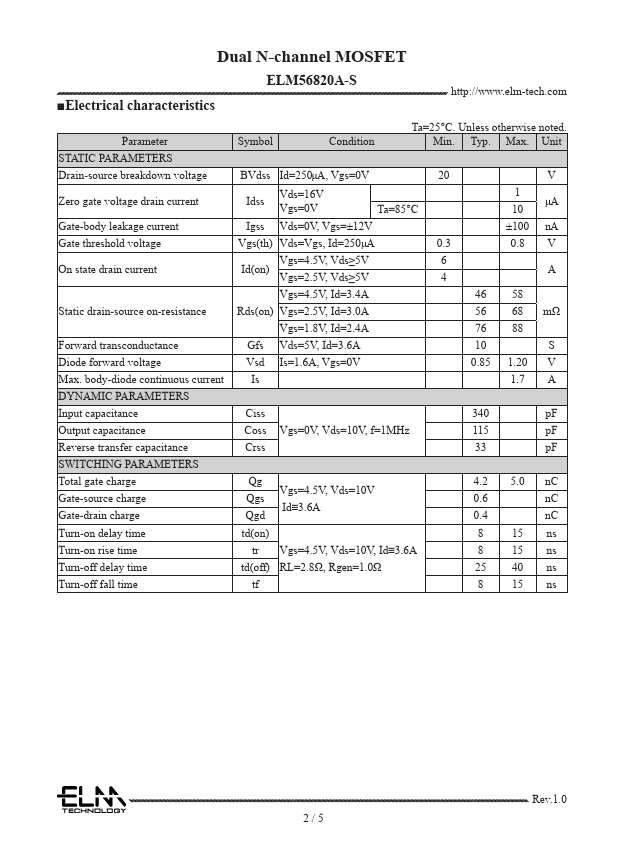

Additional preview pages of the ELM56820A-S datasheet.

Product details

Description

ELM56820A-S uses advanced trench technology to provide excellent Rds(on) and low gate charge.

Features

Vds=20V.
Id=3.4A.
Rds(on) = 58mΩ (Vgs=4.5V).
Rds(on) = 68mΩ (Vgs=2.5V).
Rds(on) = 88mΩ (Vgs=1.8V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vds Vgs Id Idm Pd Tj Tstg Ta=25°C. Unless otherwise noted. Limit Unit 20 V ±12 V 3.4 A 2.4 2.
