ELM544539A-N - Complementary MOSFET

Product Overview

ELM

Part number	ELM544539A-N
Manufacturer	ELM
File Size	1.25 MB
Description	Complementary MOSFET
Datasheet	ELM544539A-N Datasheet

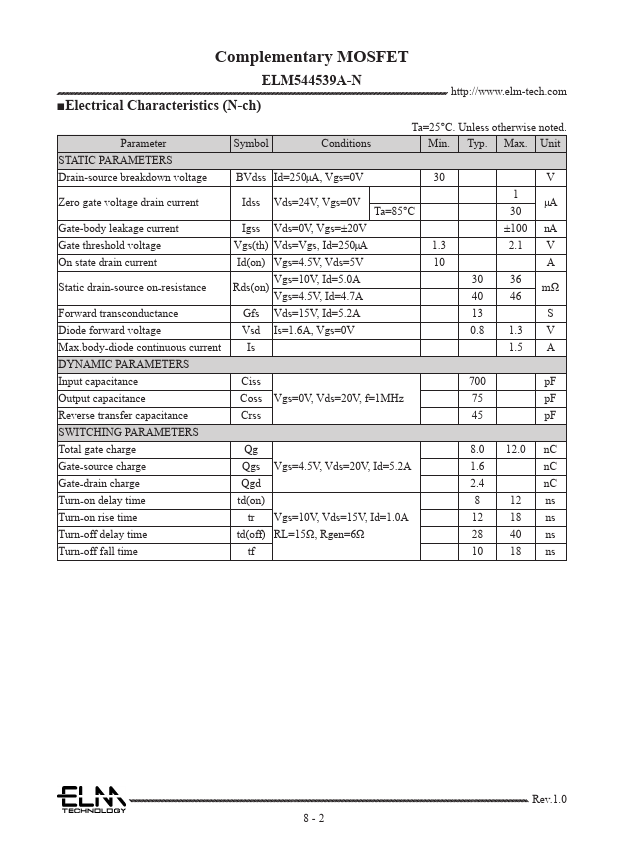

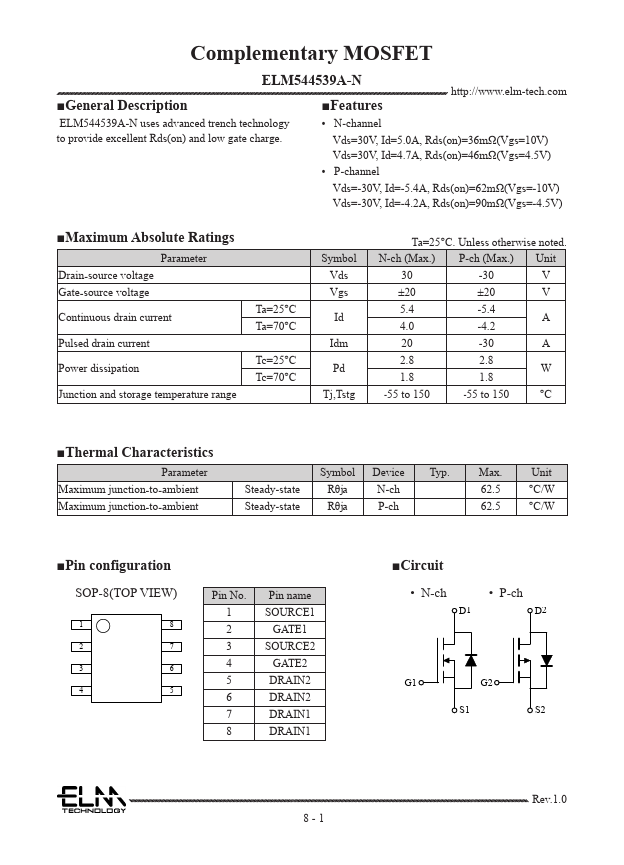

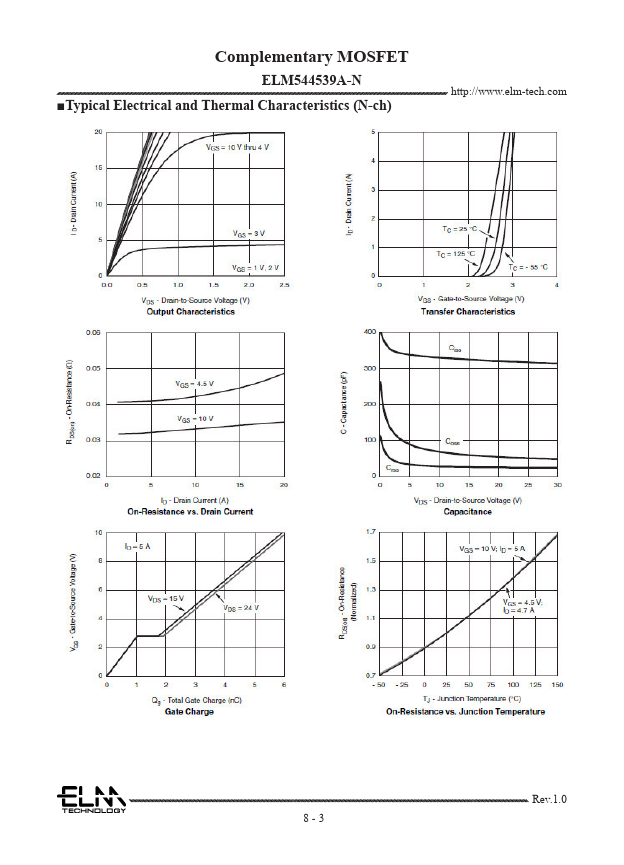

Additional preview pages of the ELM544539A-N datasheet.

ELM544539A-N

http://www. elm-tech. com ELM544539A-N uses advanced trench technology.
N-channel to provide excellent Rds(on) and low gate charge. Vds=30V, Id=5.0A, Rds(on)=36mΩ(Vgs=10V) Vds=30V, Id=4.7A, Rds(on)=46mΩ(Vgs=4.5V).
P-channel Vds=-30V, Id=-5.4A, Rds(on)=62mΩ(Vgs=-10V) Vds=-30V, Id=-4.2A, Rds(on)=90mΩ(Vgs=-4.5V).
Maximum Absolute Ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current Pulsed drain current Power dissipation Junction and stor.
