ELM54943WSA-N - Dual P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

ELM54943WSA-N Dual P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM54943WSA-N

Datasheet Details

Part number	ELM54943WSA-N
Manufacturer	ELM
File Size	785.47 KB
Description	Dual P-channel MOSFET
Datasheet	ELM54943WSA-N Datasheet

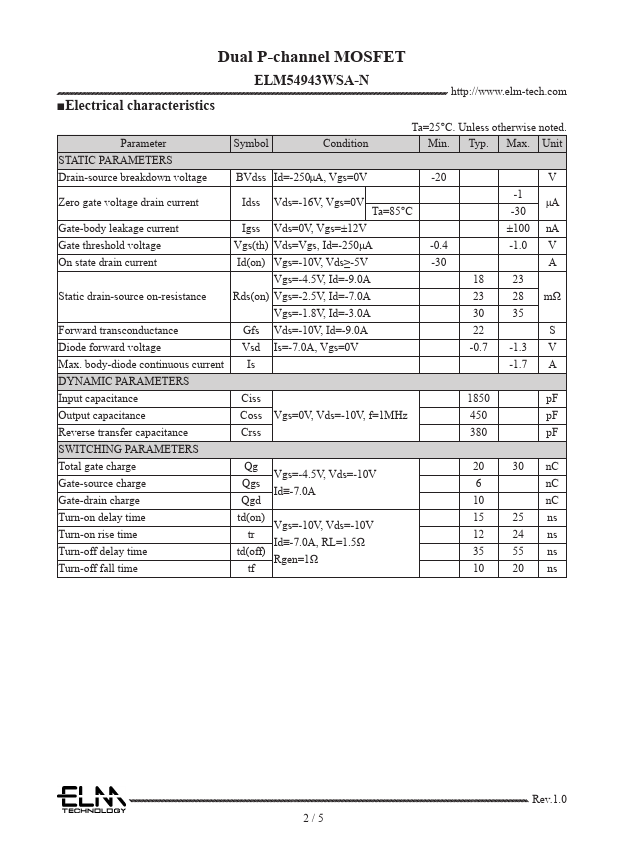

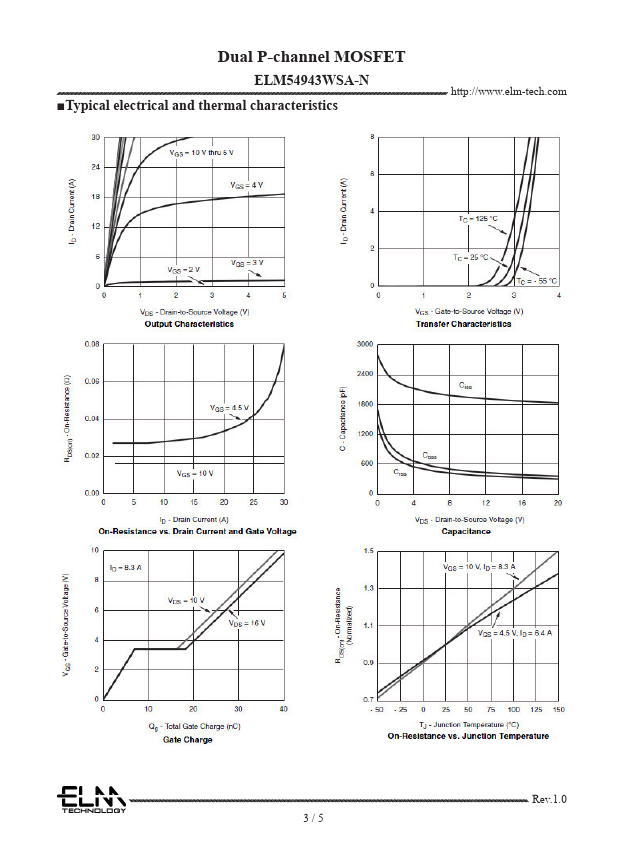

Additional preview pages of the ELM54943WSA-N datasheet.

Product details

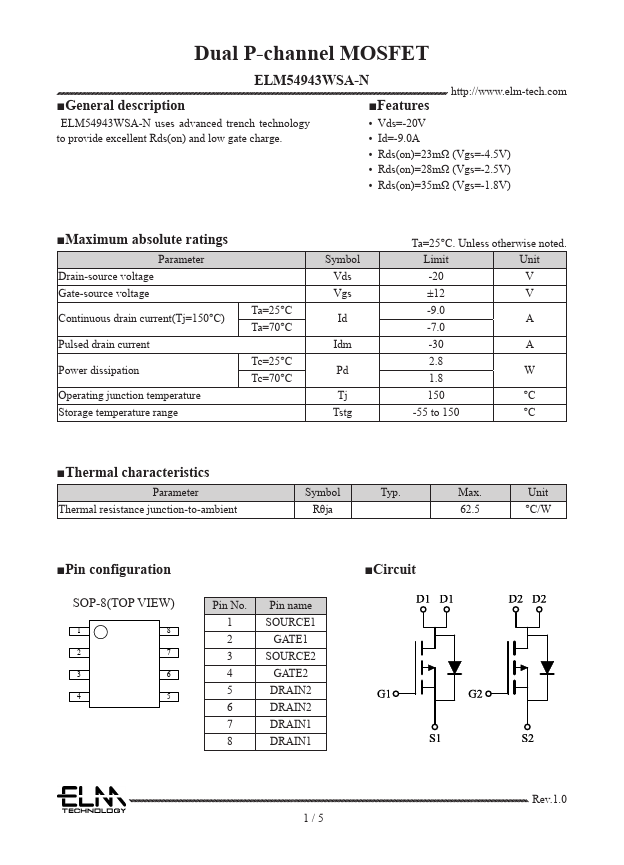

Features

ELM54943WSA-N uses advanced trench technology.
Vds=-20V to provide excellent Rds(on) and low gate charge.
Id=-9.0A.
Rds(on)=23mΩ (Vgs=-4.5V).
Rds(on)=28mΩ (Vgs=-2.5V).
Rds(on)=35mΩ (Vgs=-1.8V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol.
