ELM54910WA-N - Dual N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

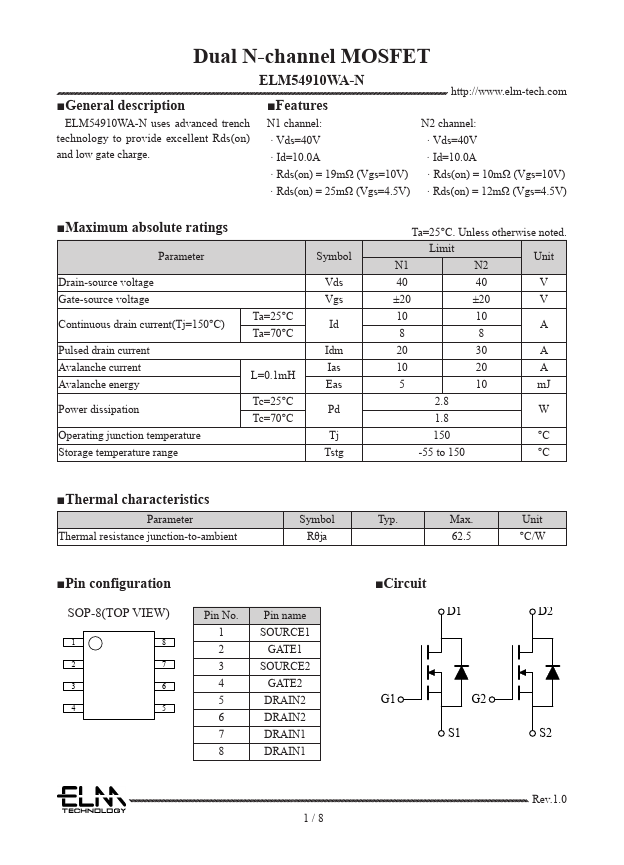

ELM54910WA-N Dual N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM54910WA-N

Datasheet Details

Part number	ELM54910WA-N
Manufacturer	ELM
File Size	1.01 MB
Description	Dual N-channel MOSFET
Datasheet	ELM54910WA-N Datasheet

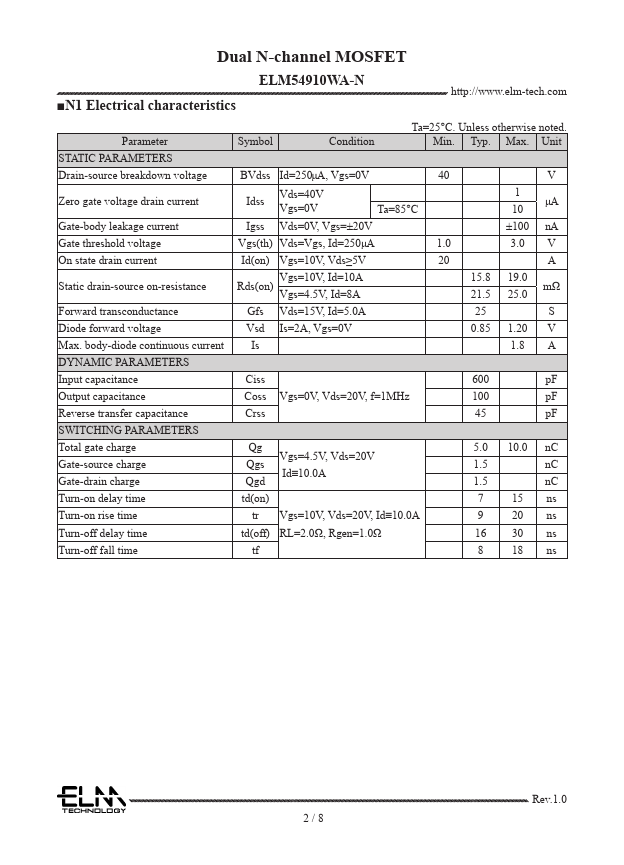

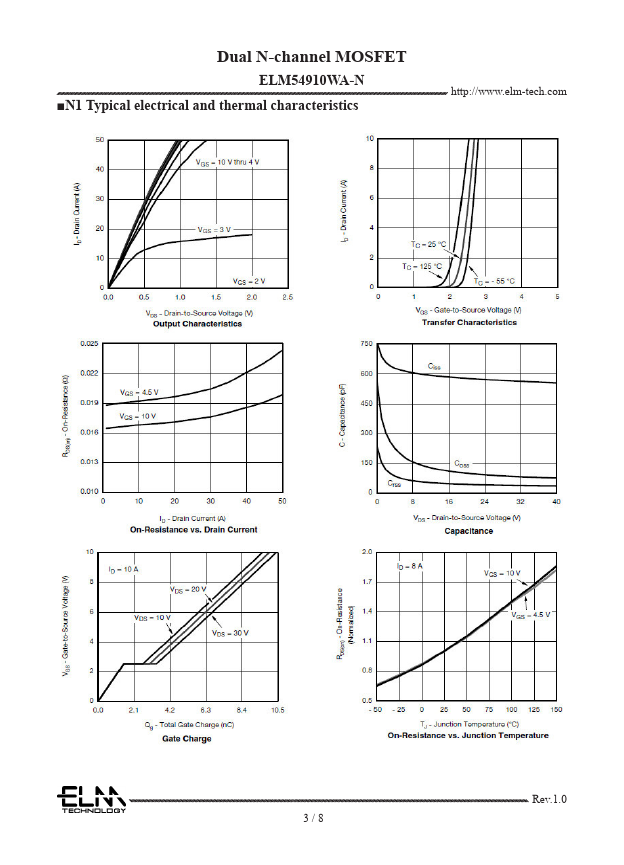

Additional preview pages of the ELM54910WA-N datasheet.

Product details

Description

ELM54910WA-N uses advanced trench technology to provide excellent Rds(on) and low gate charge.

Features

N1 channel:.
Vds=40V.
Id=10.0A.
Rds(on) = 19mΩ (Vgs=10V).
Rds(on) = 25mΩ (Vgs=4.5V) http://www. elm-tech. com N2 channel:.
Vds=40V.
Id=10.0A.
Rds(on) = 10mΩ (Vgs=10V).
Rds(on) = 12mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Avalanche current Avalanche energy Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C L.
