ELM4C4903FKA-N - Complementary MOSFET

Product Overview

ELM

Part number	ELM4C4903FKA-N
Manufacturer	ELM
File Size	1.10 MB
Description	Complementary MOSFET
Datasheet	ELM4C4903FKA-N Datasheet

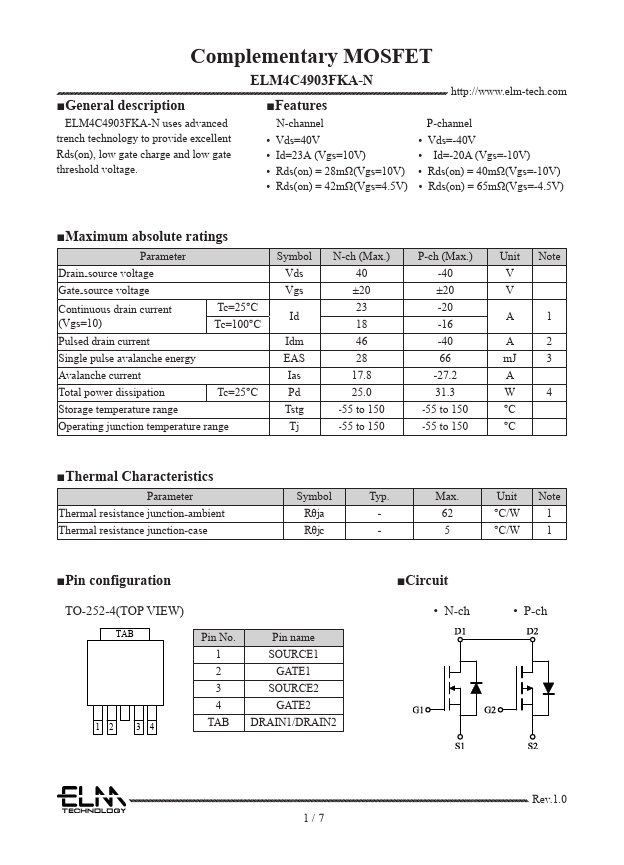

Additional preview pages of the ELM4C4903FKA-N datasheet.

ELM4C4903FKA-N uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

N-channel.
Vds=40V.
Id=23A (Vgs=10V).
Rds(on) = 28mΩ(Vgs=10V).
Rds(on) = 42mΩ(Vgs=4.5V) http://www. elm-tech. com P-channel.
Vds=-40V.
Id=-20A (Vgs=-10V).
Rds(on) = 40mΩ(Vgs=-10V).
Rds(on) = 65mΩ(Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=10) Tc=25°C Tc=100°C Pulsed drain current Single pulse avalanche energy Avalanche current Total powe.
