ELM4C2901FBA-S - Complementary MOSFET

Product Overview

ELM

Part number	ELM4C2901FBA-S
Manufacturer	ELM
File Size	1.38 MB
Description	Complementary MOSFET
Datasheet	ELM4C2901FBA-S Datasheet

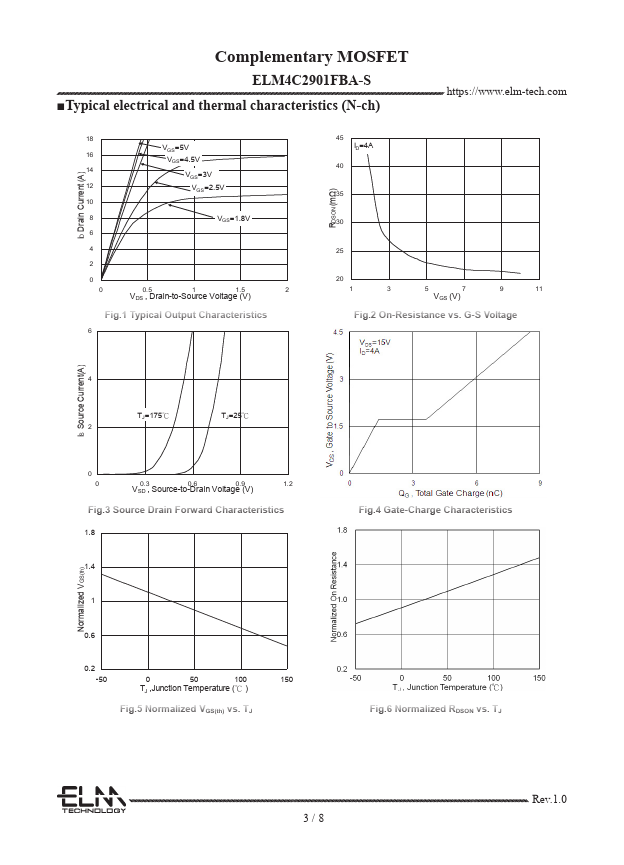

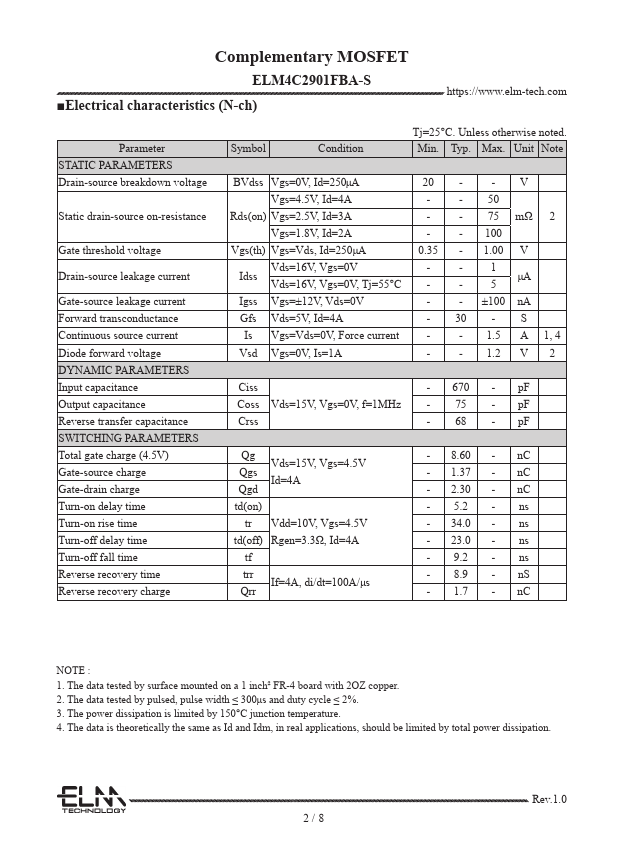

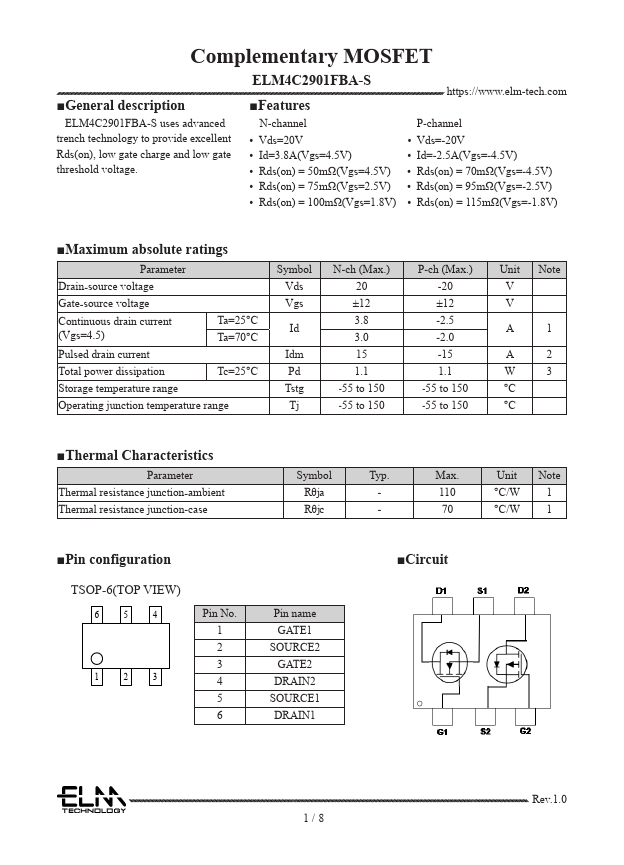

Additional preview pages of the ELM4C2901FBA-S datasheet.

ELM4C2901FBA-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

N-channel.
Vds=20V.
Id=3.8A(Vgs=4.5V).
Rds(on) = 50mΩ(Vgs=4.5V).
Rds(on) = 75mΩ(Vgs=2.5V).
Rds(on) = 100mΩ(Vgs=1.8V) https://www. elm-tech. com P-channel.
Vds=-20V.
Id=-2.5A(Vgs=-4.5V).
Rds(on) = 70mΩ(Vgs=-4.5V).
Rds(on) = 95mΩ(Vgs=-2.5V).
Rds(on) = 115mΩ(Vgs=-1.8V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=4.5) Ta=25°C Ta=70°C Pulsed.
