ELM4C3909FBA-S - Complementary MOSFET

Product Overview

ELM

Part number	ELM4C3909FBA-S
Manufacturer	ELM
File Size	1.72 MB
Description	Complementary MOSFET
Datasheet	ELM4C3909FBA-S Datasheet

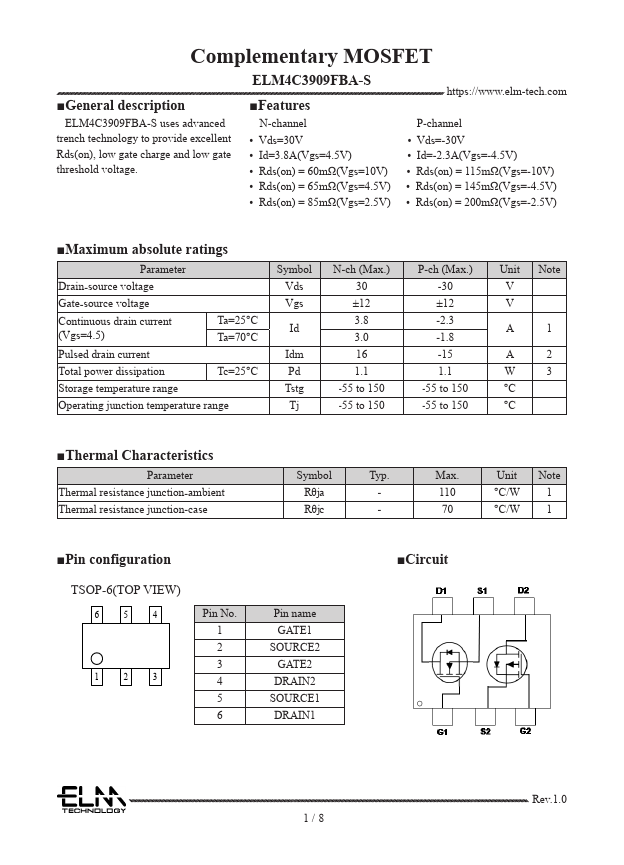

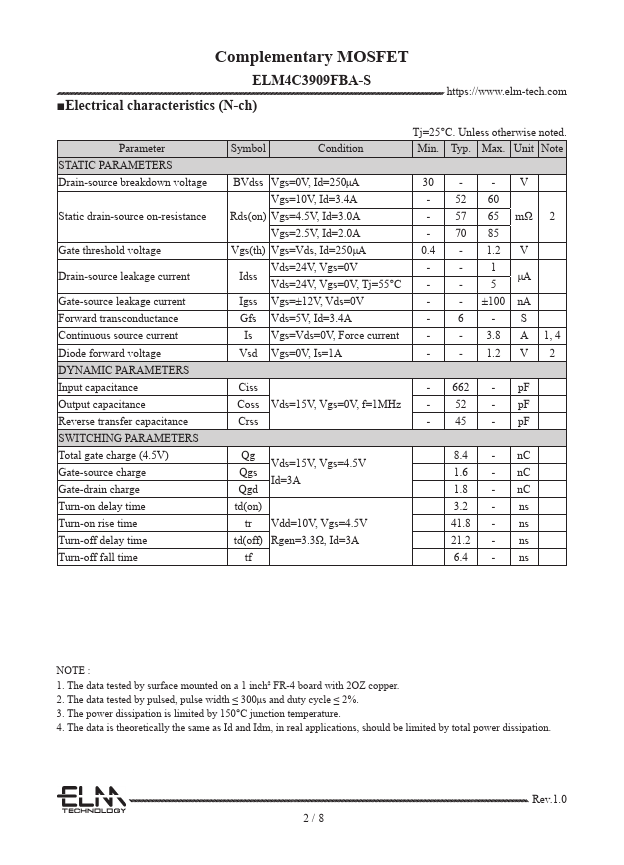

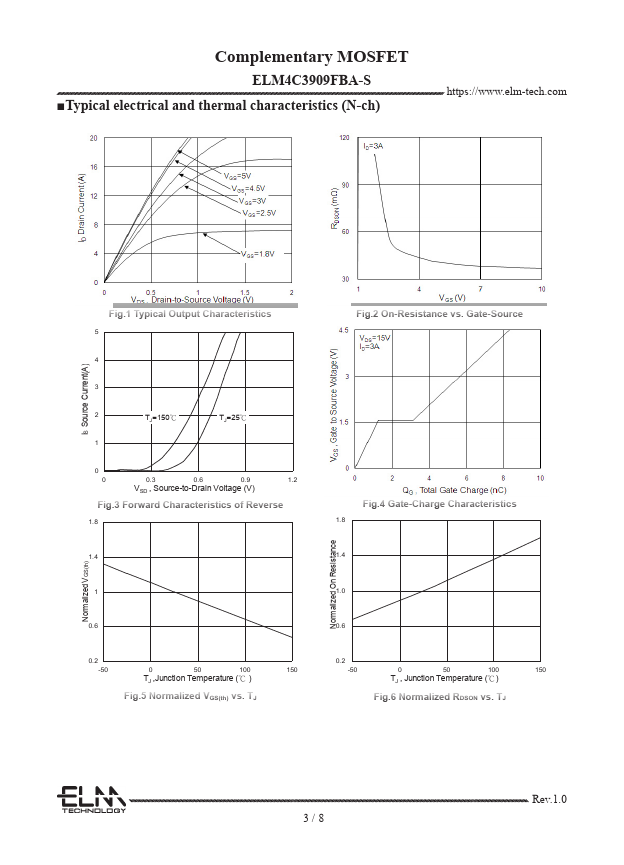

Additional preview pages of the ELM4C3909FBA-S datasheet.

ELM4C3909FBA-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

N-channel.
Vds=30V.
Id=3.8A(Vgs=4.5V).
Rds(on) = 60mΩ(Vgs=10V).
Rds(on) = 65mΩ(Vgs=4.5V).
Rds(on) = 85mΩ(Vgs=2.5V) https://www. elm-tech. com P-channel.
Vds=-30V.
Id=-2.3A(Vgs=-4.5V).
Rds(on) = 115mΩ(Vgs=-10V).
Rds(on) = 145mΩ(Vgs=-4.5V).
Rds(on) = 200mΩ(Vgs=-2.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=4.5) Ta=25°C Ta=70°C Pulsed.
