SS15, SS12 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

EIC

📥 Download Datasheet

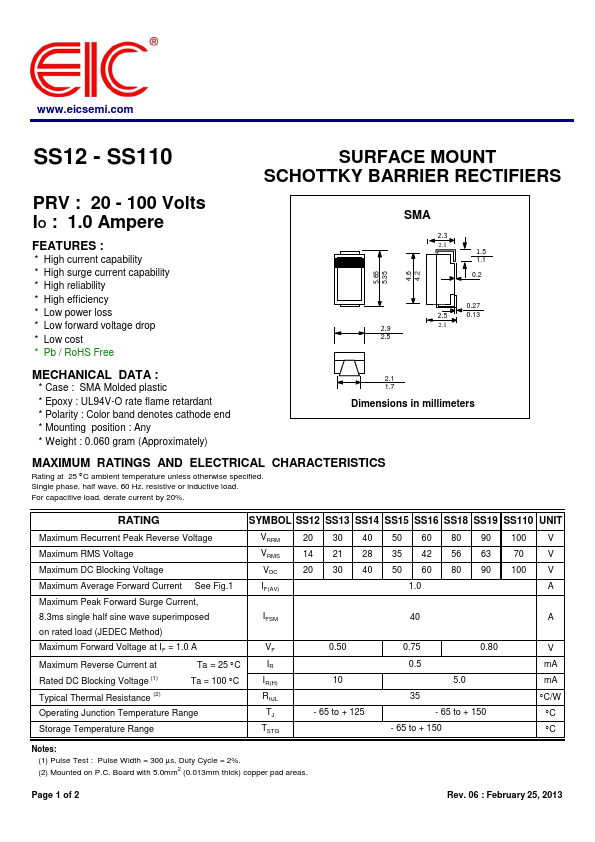

SS15 Datasheet Preview — This datasheet PDF includes multiple part numbers: SS15, SS12. Please refer to the document for exact specifications by model.

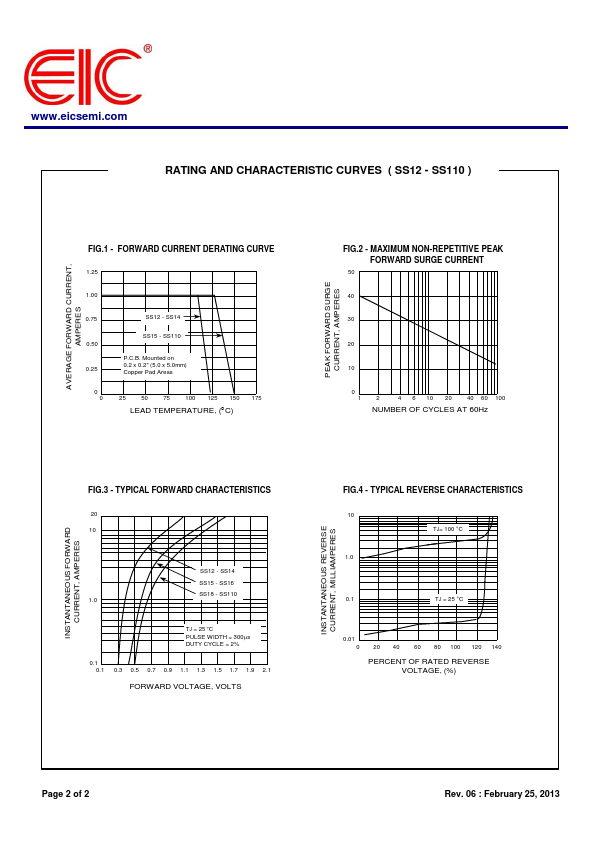

datasheet Preview Page 2

Datasheet Details

Part number	SS15, SS12
Manufacturer	EIC
File Size	231.86 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Datasheet	SS12-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: SS15, SS12. Please refer to the document for exact specifications by model.

SS15 Product details

Features

:.
High current capability.
High surge current capability.
High reliability.
High efficiency.
Low power loss.
Low forward voltage drop.
Low cost.
Pb / RoHS Free 5.65 5.35 4. 6 4. 2 SMA 2.3 2.1 1.5 1.1 0.2 0.27 2.5 0.13 2.9 2.1 2.5.
