SS150TI60110, SS150TA60110 Datasheet - IXYS

SS150TI60110 Silicon Carbide Schottky Diode

SS150TA60110, SS150TC60110, SS150TI60110 Silicon Carbide Schottky Diode Part Number SS150TA60110 SS150TC60110 SS150TI60110 VRRM (V) 600 600 600 IF(AVG) (A) 10 10 10 Configuration Triple Common Anode Triple Common Cathode Triple Independent Triple Independent (TI) VRRM = 600 V IF(AVG) = CJ 10 A = 80 pF Triple Anode (TA) Triple Cathode (TC) A = Anode C = Cathode Symbol Parameter VRRM VRSM VDC IF(AVG) IFRM TVJ TSTG PTOT Symbol Repetitive Peak Reverse Voltage Repetitive Surge Reverse Voltage DC.

SS150TI60110 Features

* Repetitive Peak Forward Surge Current TVJ = 45°C, tP = 10 ms Half Sine Wave D = 0.3 Operating Virtual Junction Temperature Storage Temperature TC = 25 °C (20 W/device)

* 600 V SiC Schottky

SS150TA60110_IXYS.pdf

This datasheet PDF includes multiple part numbers: SS150TI60110, SS150TA60110. Please refer to the document for exact specifications by model.

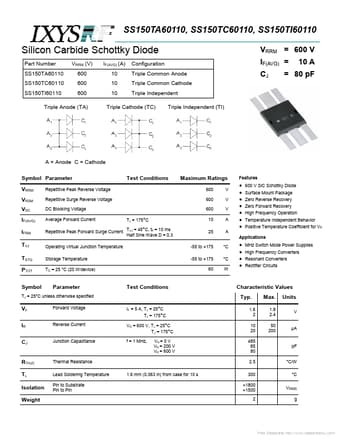

SS150TI60110 Datasheet Preview Page 2 SS150TI60110 Datasheet Preview Page 3

Datasheet Details

Part number:

SS150TI60110, SS150TA60110

Manufacturer:

IXYS

File Size:

187.56 KB

Description:

Silicon carbide schottky diode.

Note:

This datasheet PDF includes multiple part numbers: SS150TI60110, SS150TA60110.
Please refer to the document for exact specifications by model.
