SB315SVF - (SB315SVF / SB330SVF) SCHOTTKY BARRIER RECTIFIER DIODES

Datasheet Summary

Features

  • :.
  • High current capability High surge current capability High reliability High efficiency Low power loss Low forward voltage drop Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – SB315SVF

Datasheet Details

Part number SB315SVF
Manufacturer EIC discrete Semiconductors
File Size 59.15 KB
Description (SB315SVF / SB330SVF) SCHOTTKY BARRIER RECTIFIER DIODES
Datasheet download datasheet SB315SVF Datasheet
Additional preview pages of the SB315SVF datasheet.

📁 Similar Datasheet

  • SB3150 - SCHOTTKY RECTIFIER (SMC Diode)
  • SB3150 - (SB3150 / SB3200) Power Schottky Rectifier (Sirectifier)
  • SB3150 - (SB3150 / SB3200) Schottky Barrier Rectifiers (LRC)
  • SB3150 - SCHOTTKY BARRIER RECTIFIER (Gulf Semiconductor)
  • SB3150 - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
  • SB3150 - Schottky Diodes (Kexin)
  • SB3150 - 3.0A SCHOTTKY BARRIER RECTIFIER (UTC)
  • SB3100 - 3.0A SCHOTTKY BARRIER RECTIFIER (DIODES)
  • SB3100 - Schottky Rectifier (SIRECT)
  • SB3100 - SCHOTTKY BARRIER RECTIFIERS (PAN JIT)
Other Datasheets by EIC discrete Semiconductors
  • SB330SVF - (SB315SVF / SB330SVF) SCHOTTKY BARRIER RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

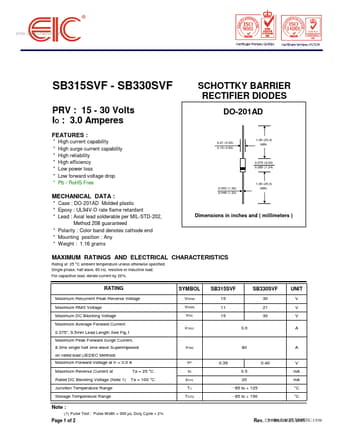

www.DataSheet4U.com SB315SVF - SB330SVF PRV : 15 - 30 Volts IO : 3.0 Amperes FEATURES : * * * * * * * High current capability High surge current capability High reliability High efficiency Low power loss Low forward voltage drop Pb / RoHS Free SCHOTTKY BARRIER RECTIFIER DIODES DO-201AD 0.21 (5.33) 0.19 (4.82) 1.00 (25.4) MIN. 0.375 (9.52) 0.285 (7.24) MECHANICAL DATA : * Case : DO-201AD Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 1.16 grams 0.052 (1.32) 0.048 (1.22) 1.00 (25.4) MIN.
