SB3100-G - Leaded Schottky Barrier Rectifiers

Download the SB3100-G datasheet PDF. This datasheet also covers the SB320-G variant, as both devices belong to the same leaded schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • -Low drop down voltage. -Metal-Semiconductor junction with guard ring -High surge current capability -Silicon epitaxial planar chips. -For use in low voltage, high efficiency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB320-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB3100-G
Manufacturer Comchip
File Size 46.56 KB
Description Leaded Schottky Barrier Rectifiers
Datasheet download datasheet SB3100-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB3100 3.0A SCHOTTKY BARRIER RECTIFIER DIODES
SB3100 Schottky Rectifier SIRECT
SB3100 SCHOTTKY BARRIER RECTIFIERS PAN JIT
SB3100 Schottky Rectifiers Fairchild Semiconductor
SB3100 3.0A SCHOTTKY BARRIER RECTIFIER Diodes Incorporated

Other Datasheets by Comchip

Part Number Description
SB320-G Leaded Schottky Barrier Rectifiers
SB340-G Leaded Schottky Barrier Rectifiers
SB345-G Leaded Schottky Barrier Rectifiers
SB350-G Leaded Schottky Barrier Rectifiers
SB360-G Leaded Schottky Barrier Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

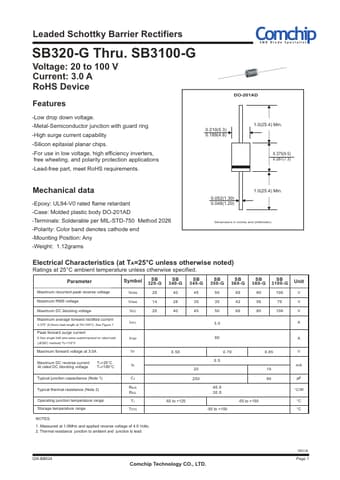

Leaded Schottky Barrier Rectifiers SB320-G Thru. SB3100-G Voltage: 20 to 100 V Current: 3.0 A RoHS Device Features -Low drop down voltage. -Metal-Semiconductor junction with guard ring -High surge current capability -Silicon epitaxial planar chips. -For use in low voltage, high efficiency inverters, free wheeling, and polarity protection applications -Lead-free part, meet RoHS requirements. Comchip SMD Diode Specialist DO-201AD 0.210(5.3) 0.189(4.8) 1.0(25.4) Min. 0.375(9.5) 0.287(7.3) Mechanical data -Epoxy: UL94-V0 rated flame retardant -Case: Molded plastic body DO-201AD -Terminals: Solderable per MIL-STD-750 Method 2026 -Polarity: Color band denotes cathode end -Mounting Position: Any -Weight: 1.12grams 0.052(1.30) 0.048(1.20) 1.0(25.4) Min.
