SB3100, SB380 3.0A SCHOTTKY BARRIER RECTIFIER

SB3100 Description

Pb SB380 - SB3100 3.0A SCHOTTKY BARRIER RECTIFIER .

SB3100 Features

* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* Low-Power Loss, High Efficiency
* High-Surge Capability
* High-Current Capability and Low-Forward Voltage Drop
* Surge Overload Rating to 80A Peak
* For Use in Low Voltage, High Frequency Inv

SB3100 Applications

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* For automotive applications requiring specific change control (i. e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://w

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB3100, SB380. Please refer to the document for exact specifications by model.

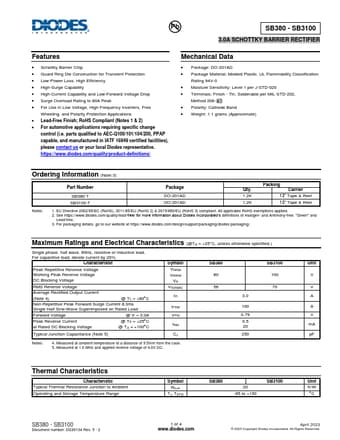

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB3100, SB380
Manufacturer
DIODES ↗
File Size
191.88 KB
Datasheet
SB380-DIODES.pdf
Description
3.0A SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB3100, SB380.
Please refer to the document for exact specifications by model.
