ZXTNS618MC - 20V NPN LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION

Name: ZXTNS618MC
SKU: ZXTNS618MC-937002

Diodes

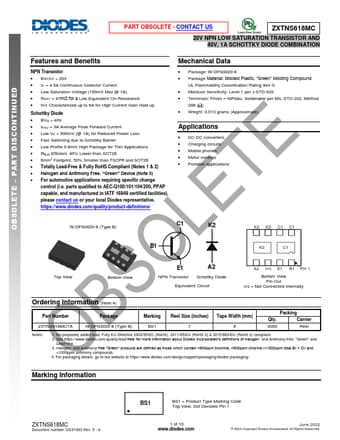

The ZXTNS618MC by Diodes is a 20V NPN LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION. Below is the official datasheet preview.

📥 Download Datasheet

ZXTNS618MC 20V NPN LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION by Diodes - Datasheet Preview — Official preview page of the **ZXTNS618MC** 20V NPN LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION datasheet (Diodes).

Datasheet Details

Part number	ZXTNS618MC
Manufacturer	DIODES
File Size	725.73 KB
Description	20V NPN LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION
Datasheet	ZXTNS618MC-Diodes.pdf
Additional preview pages of the ZXTNS618MC datasheet.

ZXTNS618MC Product details

Features

NPN Transistor.
BVCEO > 20V.
IC = 4.5A Continuous Collector Current.
Low Saturation Voltage (150mV Max @ 1A).
RSAT = 47mΩ for a Low Equivalent On-Resistance.
hFE Characterized up to 6A for High Current Gain Hold up Schottky Diode.
BVR > 40V.
IFAV = 3A Average Peak Forward Current.
Low VF < 500mV (@ 1A) for Reduced Power Loss.
Fast Switching due to Schottky Barrier.
Low Profile 0.8mm High Package for Thin.
