ZXTN19020DFF - NPN HIGH GAIN POWER TRANSISTOR

Name: ZXTN19020DFF
SKU: ZXTN19020DFF-1428197

DIODES

📥 Download Datasheet

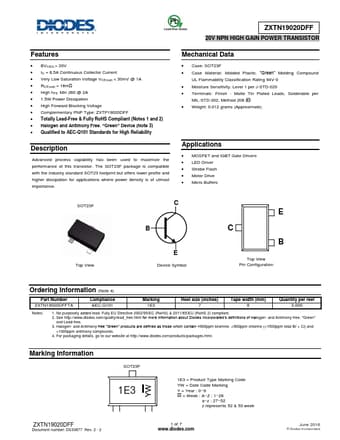

ZXTN19020DFF Datasheet Preview — Preview of ZXTN19020DFF PDF

Datasheet Details

Part number	ZXTN19020DFF
Manufacturer	DIODES
File Size	421.75 KB
Description	NPN HIGH GAIN POWER TRANSISTOR
Datasheet	ZXTN19020DFF-DIODES.pdf

ZXTN19020DFF Product details

Description

Advanced process capability has been used to maximize the performance of this transistor. Case: SOT23F Case Material: Molded Plastic. Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish - Matte

Features

BVCEO > 20V.
IC = 6.5A Continuous Collector Current.
Very Low Saturation Voltage VCE(sat) < 30mV @ 1A.
RCE(sat) = 18mΩ.
High hFE Min 260 @ 2A.
1.5W Power Dissipation.
High Forward Blocking Voltage.
Complementary PNP Type: ZXTP19020DFF.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 and 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
