ZXTN19100CG - NPN Transistor

Diodes

📥 Download Datasheet

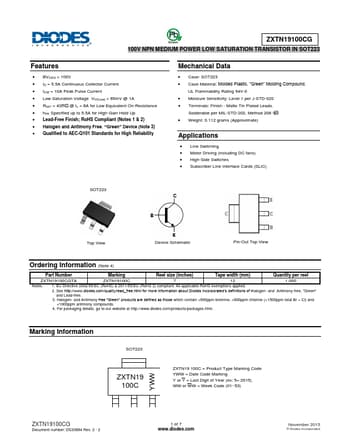

ZXTN19100CG Datasheet Preview — Preview of ZXTN19100CG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZXTN19100CG
Manufacturer	DIODES
File Size	487.44 KB
Description	NPN Transistor
Datasheet	ZXTN19100CG-Diodes.pdf

ZXTN19100CG Product details

Features

BVCEO > 100V.
IC = 5.5A Continuous Collector Current.
ICM = 10A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < 65mV @ 1A.
RSAT = 43mΩ @ Ic = 6A for Low Equivalent On-Resistance.
hFE Specified up to 5.5A for High Gain Hold Up.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SOT223.
Case Material: Molded Plas.
