ZXTN07045EFF - 45V NPN LOW SATURATION TRANSISTOR

Name: ZXTN07045EFF
SKU: ZXTN07045EFF-693201

Diodes

📥 Download Datasheet

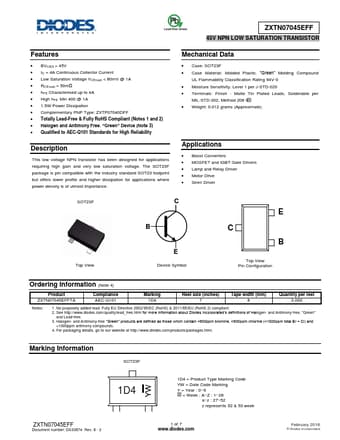

ZXTN07045EFF Datasheet Preview — Preview of ZXTN07045EFF PDF

Datasheet Details

Part number	ZXTN07045EFF
Manufacturer	DIODES
File Size	387.60 KB
Description	45V NPN LOW SATURATION TRANSISTOR
Datasheet	ZXTN07045EFF_Diodes.pdf

ZXTN07045EFF Product details

Description

This low voltage NPN transistor has been designed for applications requiring high gain and very low saturation voltage. Case: SOT23F Case Material: Molded Plastic. Moisture Sensitivity: Level 1 per J-STD-02

Features

BVCEO > 45V.
IC = 4A Continuous Collector Current.
Low Saturation Voltage VCE(sat) < 80mV @ 1A.
RCE(sat) = 50mΩ.
hFE Characterised up to 4A.
High hFE Min 400 @ 1A.
1.5W Power Dissipation.
Complementary PNP Type: ZXTP07040DFF.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 and 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
