PAM2422, PAM2423 PWM STEP-UP DC-DC CONVERTER

PAM2422 Description

PAM2421/ PAM2422/ PAM2423 3A, 4.5A, 5.5A PWM STEP-UP DC-DC CONVERTER .
The PAM242x devices are high-performance, fixed frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs.

PAM2422 Features

* Greater than 90% Efficiency
* Adjustable Output Voltage Up to 24V
* Internal 24V Power MOSFET
* Peak Current 3A, 4.5A, 5.5A
* 520kHz Frequency
* Built-In Overvoltage Protection (OVP)
* Open Protection
* Programmable Soft-Start Functio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PAM2422, PAM2423. Please refer to the document for exact specifications by model.

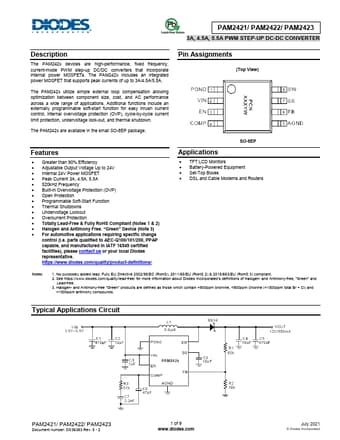

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM2422, PAM2423
Manufacturer
DIODES ↗
File Size
440.78 KB
Datasheet
PAM2423-Diodes.pdf
Description
PWM STEP-UP DC-DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: PAM2422, PAM2423.
Please refer to the document for exact specifications by model.
