FZT653 NPN HIGH PERFORMANCE TRANSISTOR

FZT653 Description

.

FZT653 Features

* BVCEO > 100V
* IC = 3A High Continuous Current
* ICM = 6A Peak Pulse Current
* Low Saturation Voltage VCE(sat) < 300mV @ 1A
* Complementary PNP Type: FZT753
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Quali

FZT653 Applications

* the appropriate industry sector guidelines should be considered with regards to voltage spacing between terminals. FZT653 Document Number DS33150 Rev. 5 - 2 6 of 7 www. diodes. com June 2015 © Diodes Incorporated A Product Line of Diodes Incorporated FZT653 IMPORTANT NOTICE DIODES INCORPORATED

📥 Download Datasheet

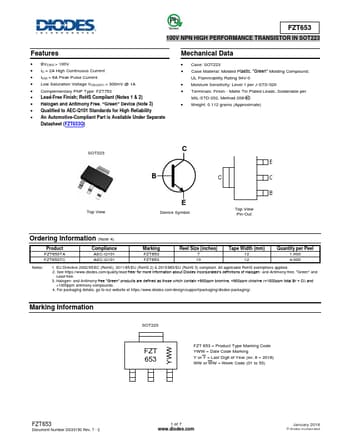

Preview of FZT653 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FZT653
Manufacturer
DIODES ↗
File Size
626.54 KB
Datasheet
FZT653-Diodes.pdf
Description
NPN HIGH PERFORMANCE TRANSISTOR
