FZT692BQ - 70V NPN MEDIUM POWER HIGH GAIN TRANSISTOR

DIODES

📥 Download Datasheet

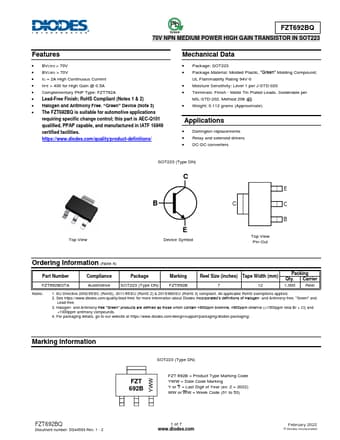

FZT692BQ Datasheet Preview — Preview of FZT692BQ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FZT692BQ
Manufacturer	DIODES
File Size	823.27 KB
Description	70V NPN MEDIUM POWER HIGH GAIN TRANSISTOR
Datasheet	FZT692BQ-DIODES.pdf

FZT692BQ Product details

Features

BVCEO > 70V.
BVCBO > 70V.
IC = 2A High Continuous Current.
hFE > 400 for High Gain @ 0.5A.
Complementary PNP Type: FZT792A.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The FZT692BQ is suitable for automotive.
