FZT600B, FZT600 - 140V NPN DARLINGTON TRANSISTOR

Diodes

The FZT600B by Diodes is a 140V NPN DARLINGTON TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

FZT600B 140V NPN DARLINGTON TRANSISTOR by Diodes - Datasheet Preview — Official preview page of the FZT600B 140V NPN DARLINGTON TRANSISTOR datasheet (Diodes).

Datasheet Details

Part number	FZT600B, FZT600
Manufacturer	DIODES
File Size	609.76 KB
Description	140V NPN DARLINGTON TRANSISTOR
Datasheet	FZT600-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: FZT600B, FZT600. Please refer to the document for exact specifications by model.

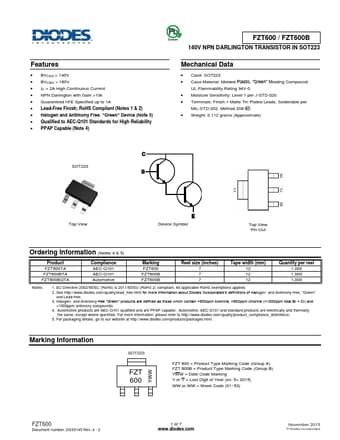

Additional preview pages of the FZT600B datasheet.

FZT600B Product details

Features

BVCEO > 140V.
BVCBO > 160V.
IC = 2A High Continuous Current.
NPN Darlington with Gain >10k.
Guaranteed hFE Specified up to 1A.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Green FZT600 / FZT600B 140V NPN.
