DMT6010LPS - N-Channel MOSFET

Description

This new generation N-Channel Enhancement Mode MOSFET is designed to minimize RDS(ON) and yet maintain superior switching performance.

This device is ideal for use in Notebook battery power management and Loadswitch.

Notebook Battery Power Management DC-DC Converters

Features

  • Thermally Efficient Package-Cooler Running.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMT6010SCT N-Channel MOSFET INCHANGE
DMT6004SCT N-Channel MOSFET INCHANGE
DMT6005LCT N-Channel MOSFET INCHANGE
DMT6009LCT N-Channel MOSFET INCHANGE
DMT028QVNTNT0S-1A LCD Module Densitron

Other Datasheets by Diodes Incorporated

Part Number Description
DMT6010LFG N-Channel MOSFET
DMT6010LSS N-Channel MOSFET
DMT6010SCT N-CHANNEL MOSFET
DMT6011LPDW 60V DUAL N-CHANNEL MOSFET
DMT6011LSS 60V N-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

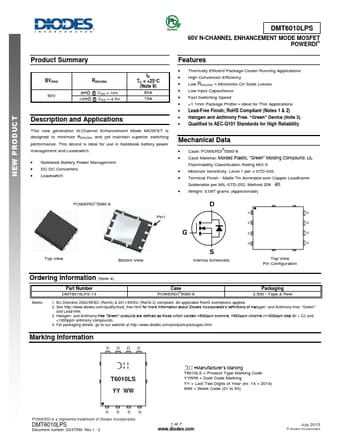

NEW PRODUCT Green DMT6010LPS 60V N-CHANNEL ENHANCEMENT MODE MOSFET POWERDI® Product Summary BVDSS 60V RDS(ON) 8mΩ @ VGS = 10V 12mΩ @ VGS = 4.5V ID TC = +25°C (Note 9) 80A 79A Description and Applications This new generation N-Channel Enhancement Mode MOSFET is designed to minimize RDS(ON) and yet maintain superior switching performance. This device is ideal for use in Notebook battery power management and Loadswitch.  Notebook Battery Power Management  DC-DC Converters  Loadswitch POWERDI®5060-8 Pin1 Features  Thermally Efficient Package-Cooler Running Applications  High Conversion Efficiency  Low RDS(ON) – Minimizes On State Losses  Low Input Capacitance  Fast Switching Speed  <1.
