DGD21084 - HALF BRIDGE GATE DRIVER

Product Overview

Diodes

📥 Download Datasheet

DGD21084 HALF BRIDGE GATE DRIVER by Diodes - Datasheet Preview — Datasheet preview – DGD21084

Datasheet Details

Part number	DGD21084
Manufacturer	DIODES
File Size	700.19 KB
Description	HALF BRIDGE GATE DRIVER
Datasheet	DGD21084 Datasheet

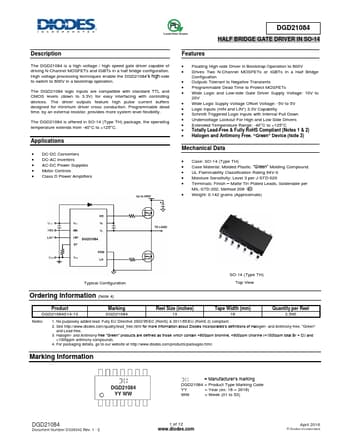

Additional preview pages of the DGD21084 datasheet.

Product details

Description

The DGD21084 is a high voltage / high speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half bridge configuration.

Features

Floating High-side Driver in Bootstrap Operation to 600V.
Drives Two N-Channel MOSFETs or IGBTs in a Half Bridge Configuation.
Outputs Tolerant to Negative Transients.
Programmable Dead Time to Protect MOSFETs.
Wide Logic and Low-side Gate Driver Supply Voltage: 10V to 20V.
Wide Logic Supply Voltage Offset Voltage: -5V to 5V.
Logic Inputs (HIN and LIN.
) 3.3V Capability.
Schmitt Triggered Logic Inputs with Internal Pull Down.
Undervoltage Lockout.
