DGD0597FUQ - HIGH FREQUENCY HIGH-SIDE AND LOW-SIDE GATE DRIVER

Product Overview

DIODES

📥 Download Datasheet

DGD0597FUQ HIGH FREQUENCY HIGH-SIDE AND LOW-SIDE GATE DRIVER by DIODES - Datasheet Preview — Datasheet preview – DGD0597FUQ

Datasheet Details

Part number	DGD0597FUQ
Manufacturer	DIODES
File Size	1.22 MB
Description	HIGH FREQUENCY HIGH-SIDE AND LOW-SIDE GATE DRIVER
Datasheet	DGD0597FUQ Datasheet

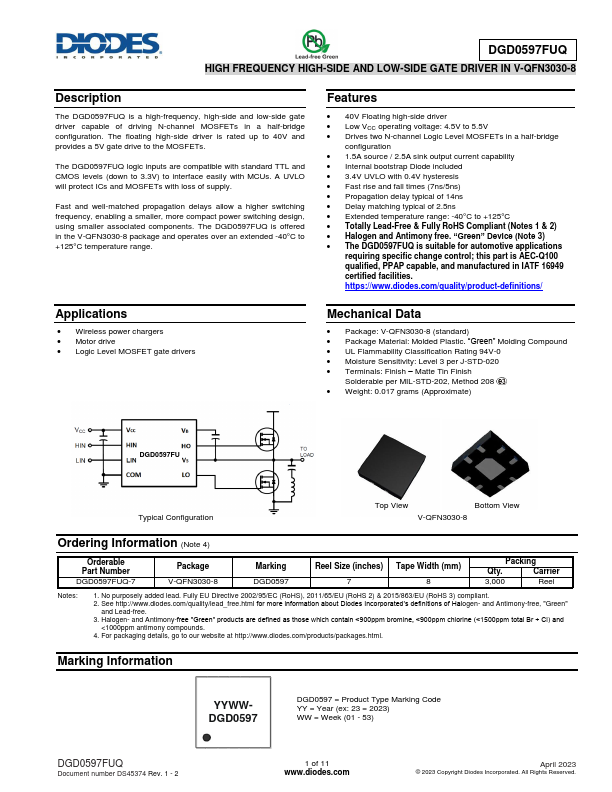

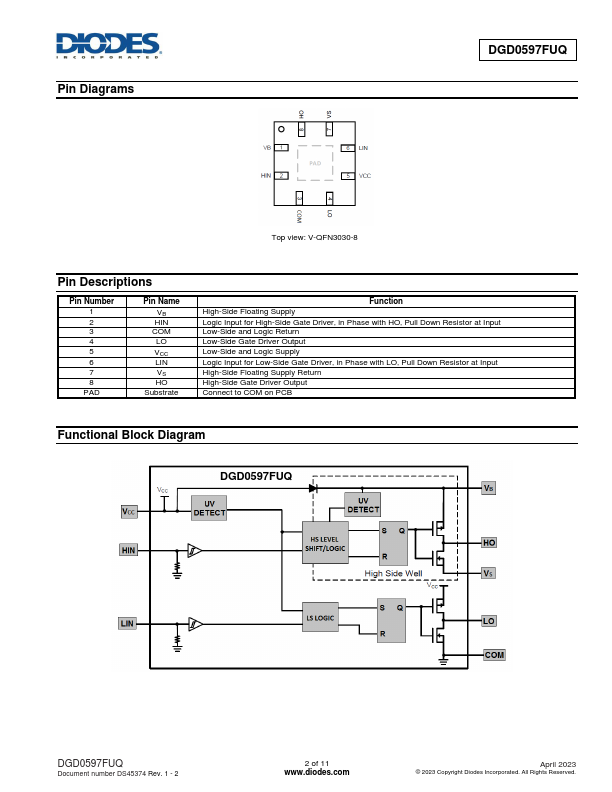

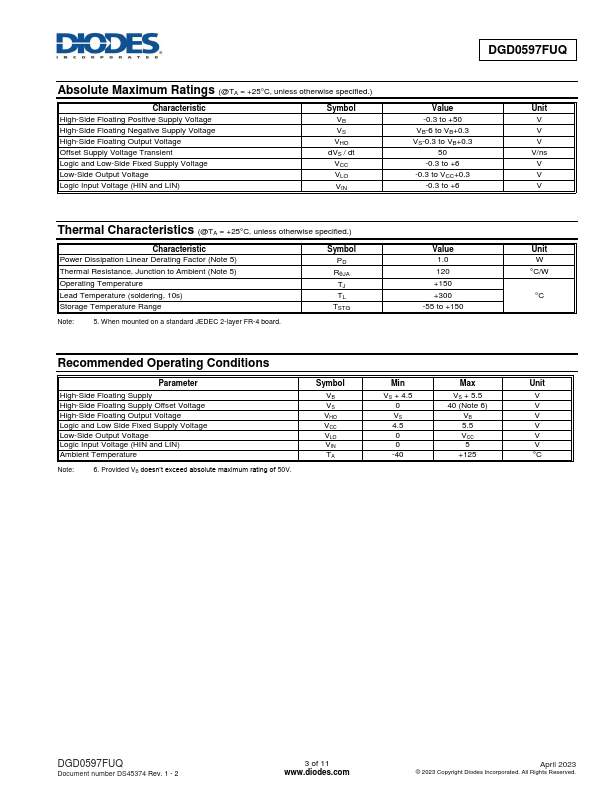

Additional preview pages of the DGD0597FUQ datasheet.

Product details

Description

The DGD0597FUQ is a high-frequency, high-side and low-side gate driver capable of driving N-channel MOSFETs in a half-bridge configuration.

Features

40V Floating high-side driver.
Low VCC operating voltage: 4.5V to 5.5V.
Drives two N-channel Logic Level MOSFETs in a half-bridge configuration.
1.5A source / 2.5A sink output current capability.
Internal bootstrap Diode included.
3.4V UVLO with 0.4V hysteresis.
Fast rise and fall times (7ns/5ns).
Propagation delay typical of 14ns.
Delay matching typical of 2.5ns.
Extended temperature range: -40°C to +125°C.
Totally Lead-Free & Fully RoHS C.
