DGD2103A - HALF-BRIDGE GATE DRIVER

Product Overview

Diodes

📥 Download Datasheet

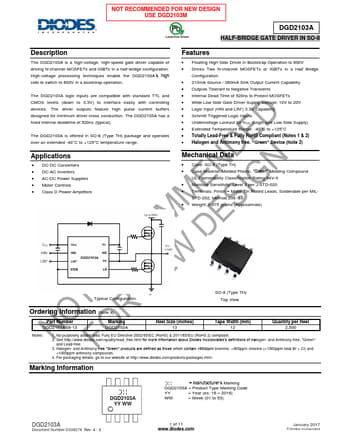

DGD2103A HALF-BRIDGE GATE DRIVER by Diodes - Datasheet Preview — Datasheet preview – DGD2103A

Datasheet Details

Part number	DGD2103A
Manufacturer	DIODES
File Size	872.34 KB
Description	HALF-BRIDGE GATE DRIVER
Datasheet	DGD2103A Datasheet
Additional preview pages of the DGD2103A datasheet.

Product details

Description

The DGD2103A is a high-voltage / high-speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half bridge configuration.

Features

Floating High-Side Driver in Bootstrap Operation to 600V.
Drives Two N-channel MOSFETs or IGBTs in a Half Bridge Configuration.
210mA Source / 360mA Sink Output Current Capability.
Outputs Tolerant to Negative Transients.
Internal Dead Time of 520ns to Protect MOSFETs.
Wide Low Side Gate Driver Supply Voltage: 10V to 20V.
Logic Input (HIN and LIN.
) 3.3V Capability.
Schmitt Triggered Logic Inputs.
Undervoltage Lockout for VCC (Logic and Low Side S.
