DDZX5V6BTS - TRIPLE SURFACE MOUNT PRECISION ZENER DIODE

Product Overview

Diodes

Part number	DDZX5V6BTS
Manufacturer	DIODES
File Size	153.94 KB
Description	TRIPLE SURFACE MOUNT PRECISION ZENER DIODE
Datasheet	DDZX5V6BTS Datasheet
Note	This datasheet PDF includes multiple part numbers: DDZX5V6BTS, DDZX5V1BTS. Please refer to the document for exact specifications by model.

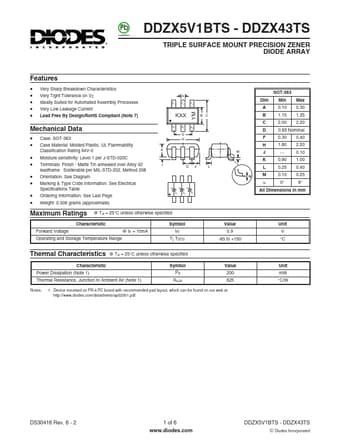

Additional preview pages of the DDZX5V6BTS datasheet.

Very Sharp Breakdown Characteristics.
Very Tight Tolerance on VZ.
Ideally Suited for Automated Assembly Processes.
Very Low Leakage Current.
Lead Free By Design/RoHS Compliant (Note 7) A C1 C2 C3 KXX BC YM Mechanical Data.
Case: SOT-363.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture sensitivity: Level 1 per J-STD-020C.
Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD.
