DDZX968x - (DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE

Product Overview

Diodes Incorporated

📥 Download Datasheet

DDZX968x (DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE by Diodes Incorporated - Datasheet Preview — Datasheet preview – DDZX968x

Datasheet Details

Part number	DDZX968x
Manufacturer	DIODES Incorporated
File Size	183.41 KB
Description	(DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE
Datasheet	DDZX968x Datasheet
Note	This datasheet PDF includes multiple part numbers: DDZX968x, DDZX9682. Please refer to the document for exact specifications by model.

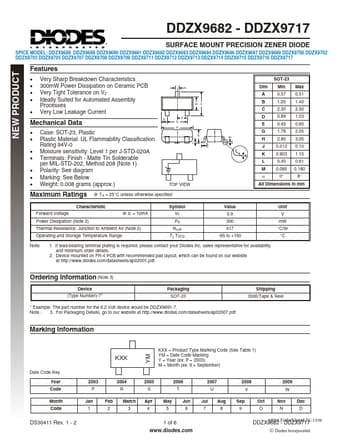

Additional preview pages of the DDZX968x datasheet.

Product details

Features

Very Sharp Breakdown Characteristics 300mW Power Dissipation on Ceramic PCB Very Tight Tolerance on VZ Ideally Suited for Automated Assembly Processes Very Low Leakage Current E D G H SOT-23 A Dim A B C Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.085 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.180 8° B C D E G Mechanical Data Case: SOT-23, Plastic Plastic Material: UL Flammability Classific.
