DDZX9682 - (DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE

Product Overview

Diodes Incorporated

📥 Download Datasheet

DDZX9682 (DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE by Diodes Incorporated - Datasheet Preview — Datasheet preview – DDZX9682

Datasheet Details

Part number	DDZX9682
Manufacturer	DIODES Incorporated
File Size	183.41 KB
Description	(DDZX9682 - DDZX9717) SURFACE MOUNT PRECISION ZENER DIODE
Datasheet	DDZX9682 Datasheet
Additional preview pages of the DDZX9682 datasheet.

Product details

Features

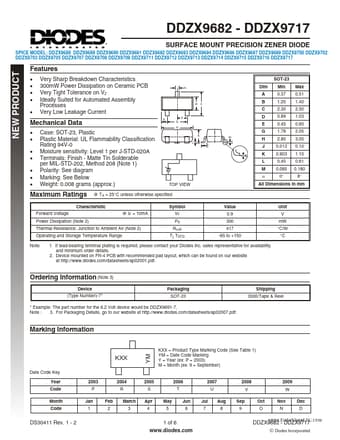

Very Sharp Breakdown Characteristics 300mW Power Dissipation on Ceramic PCB Very Tight Tolerance on VZ Ideally Suited for Automated Assembly Processes Very Low Leakage Current E D G H SOT-23 A Dim A B C Min 0.37 1.20 2.30 0.89 0.45 1.78 2.80 0.013 0.903 0.45 0.085 0° Max 0.51 1.40 2.50 1.03 0.60 2.05 3.00 0.10 1.10 0.61 0.180 8° B C D E G Mechanical Data Case: SOT-23, Plastic Plastic Material: UL Flammability Classific.
