DDTC124GUA - NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTC124GUA
Manufacturer	DIODES
File Size	84.25 KB
Description	NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTC124GUA Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTC124GUA, DDTC114GUA. Please refer to the document for exact specifications by model.

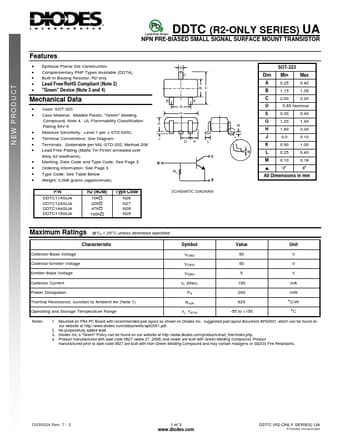

Additional preview pages of the DDTC124GUA datasheet.

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistor, R2 only.
Lead Free/RoHS Compliant (Note 2).
"Green" Device (Note 3 and 4) A C BC SOT-323 Dim Min Max A 0.25 0.40 B 1.15 1.35 Mechanical Data BE C 2.00 2.20.
Case: SOT-323.
Case Material: Molded Plastic, "Green" Molding G H D 0.65 Nominal E 0.30 0.40 Compound, Note 4. UL Flammability Classification Rating 94V-0.
