DDTC122TU, DDTC122LU - (DDTCxxxU) NPN PRE-BIASED 100 mA SOT-323 SURFACE MOUNT TRANSISTOR

Diodes Incorporated

📥 Download Datasheet

DDTC122TU Datasheet Preview — This datasheet PDF includes multiple part numbers: DDTC122TU, DDTC122LU. Please refer to the document for exact specifications by model.

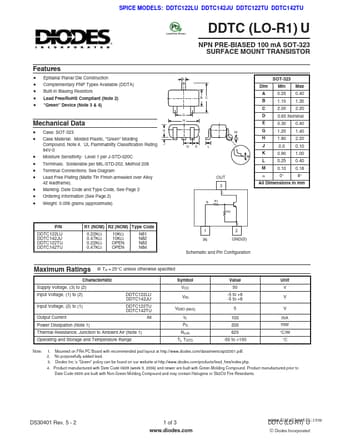

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DDTC122TU, DDTC122LU
Manufacturer	DIODES Incorporated
File Size	73.85 KB
Description	(DDTCxxxU) NPN PRE-BIASED 100 mA SOT-323 SURFACE MOUNT TRANSISTOR
Datasheet	DDTC122LU_DiodesIncorporated.pdf
Note	This datasheet PDF includes multiple part numbers: DDTC122TU, DDTC122LU. Please refer to the document for exact specifications by model.

DDTC122TU Product details

Features

Epitaxial Planar Die Construction Complementary PNP Types Available (DDTA) Built-In Biasing Resistors Lead Free/RoHS Compliant (Note 2) "Green" Device (Note 3 & 4) G B C A SOT-323 Dim A B C D E M Min 0.25 1.15 2.00 0.30 1.20 1.80 0.0 0.90 0.25 0.10 0° Max 0.40 1.35 2.20 0.40 1.40 2.20 0.10 1.00 0.40 0.18 8° 0.65 Nominal Mechanical Data.
Case: SOT-323 Case Material: Molded Plastic, "Green" Molding Compound, No.
