DDTC124GCA - NPN PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTC124GCA
Manufacturer	DIODES
File Size	80.29 KB
Description	NPN PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR
Datasheet	DDTC124GCA Datasheet
Note	This datasheet PDF includes multiple part numbers: DDTC124GCA, DDTC114GCA. Please refer to the document for exact specifications by model.

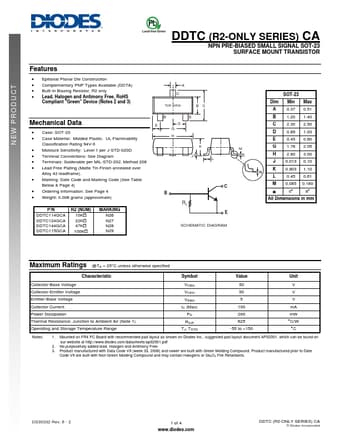

Additional preview pages of the DDTC124GCA datasheet.

Epitaxial Planar Die Construction.
Complementary PNP Types Available (DDTA).
Built-In Biasing Resistor, R2 only.
Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 2 and 3) A C TOP VIEW BC Mechanical Data.
Case: SOT-23.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020D.
Terminal Connections: See Diagram.
Terminals: Solderab.
