BAS21TM SURFACE MOUNT HIGH VOLTAGE SWITCHING DIODE ARRAY

BAS21TM Description

ADVANCE INFORMATION YM .

BAS21TM Features

* Fast Switching Speed: max. 50ns
* Continuous Reverse Voltage: max. 200V
* Repetitive Peak Reverse Voltage: max. 250V
* Repetitive Peak Forward Current: max. 1A
* Small Surface Mount Package

BAS21TM Applications

* Lead Free/RoHS Compliant (Note 1)
* "Green" Device (Notes 2 and 3) BAS21TM SURFACE MOUNT HIGH VOLTAGE SWITCHING DIODE ARRAY Mechanical Data
* Case: SOT26
* Case Material: Molded Plastic, "Green" Molding Compound, Note 5. UL Flammability Classification Rating 94V-0

📥 Download Datasheet

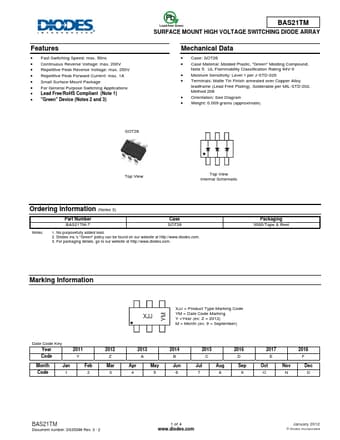

Preview of BAS21TM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS21TM
Manufacturer
DIODES ↗
File Size
87.92 KB
Datasheet
BAS21TM-Diodes.pdf
Description
SURFACE MOUNT HIGH VOLTAGE SWITCHING DIODE ARRAY
