DS1816 - 3.3V EconoReset

Dallas Semiconductor

📥 Download Datasheet

DS1816 Datasheet Preview — Preview of DS1816 PDF

Datasheet Details

Part number	DS1816
Manufacturer	Dallas Semiconductor
File Size	116.46 KB
Description	3.3V EconoReset
Datasheet	DS1816_DallasSemiconductor.pdf

DS1816 Product details

Description

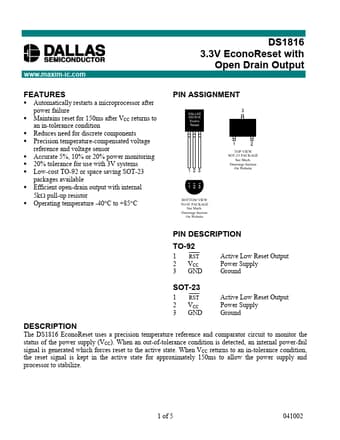

TO-92 1 RST 2 VCC 3 GND Active Low Reset Output Power Supply Ground SOT-23 1 RST 2 VCC 3 GND Active Low Reset Output Power Supply Ground DESCRIPTION The DS1816 EconoReset uses a precision temperature reference and comparator circuit to monitor the status of the power supply (VCC).When an out-of-tolerance condition is detected, an internal power-fail signal is generated which forces reset to the active state.When VCC returns to an in-tolerance condition, the reset signal is kept in the act

Features

Automatically restarts a microprocessor after power failure.
Maintains reset for 150ms after VCC returns to an in-tolerance condition.
Reduces need for discrete components.
Precision temperature-compensated voltage reference and voltage sensor.
Accurate 5%, 10% or 20% power monitoring.
20% tolerance for use with 3V systems.
Low-cost TO-92 or space saving SOT-23 packages available.
Efficient open-drain output with internal 5kW pull-up resistor.
Operat.
