DS1812 - 5V EconoReset

Dallas Semiconductor

📥 Download Datasheet

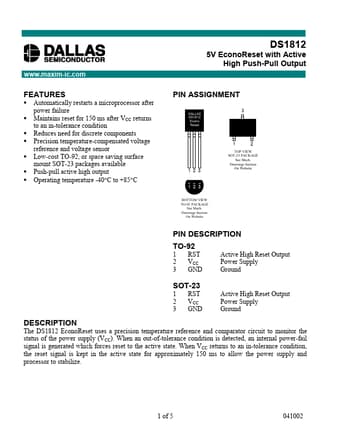

DS1812 Datasheet Preview — Preview of DS1812 PDF

Datasheet Details

Part number	DS1812
Manufacturer	Dallas Semiconductor
File Size	113.91 KB
Description	5V EconoReset
Datasheet	DS1812_DallasSemiconductor.pdf

DS1812 Product details

Description

TO-92 1 RST 2 VCC 3 GND Active High Reset Output Power Supply Ground SOT-23 1 RST 2 VCC 3 GND Active High Reset Output Power Supply Ground DESCRIPTION The DS1812 EconoReset uses a precision temperature reference and comparator circuit to monitor the status of the power supply (VCC).When an out-of-tolerance condition is detected, an internal power-fail signal is generated which forces reset to the active state.When VCC returns to an in-tolerance condition, the reset signal is kept in the a

Features

Automatically restarts a microprocessor after power failure.
Maintains reset for 150 ms after VCC returns to an in-tolerance condition.
Reduces need for discrete components.
Precision temperature-compensated voltage reference and voltage sensor.
Low-cost TO-92, or space saving surface mount SOT-23 packages available.
Push-pull active high output.
Operating temperature -40°C to +85°C PIN.
