DS1810 - 5V EconoReset

Dallas Semiconductor

📥 Download Datasheet

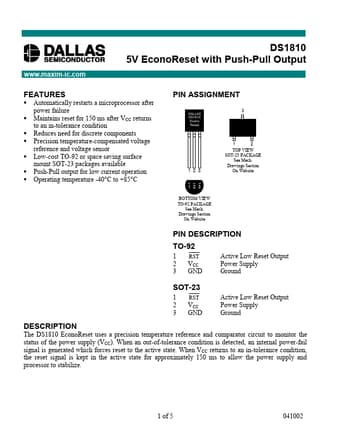

DS1810 Datasheet Preview — Preview of DS1810 PDF

Datasheet Details

Part number	DS1810
Manufacturer	Dallas Semiconductor
File Size	117.22 KB
Description	5V EconoReset
Datasheet	DS1810_DallasSemiconductor.pdf

DS1810 Product details

Description

TO-92 1 RST 2 VCC 3 GND Active Low Reset Output Power Supply Ground SOT-23 1 RST 2 VCC 3 GND Active Low Reset Output Power Supply Ground DESCRIPTION The DS1810 EconoReset uses a precision temperature reference and comparator circuit to monitor the status of the power supply (VCC).When an out-of-tolerance condition is detected, an internal power-fail signal is generated which forces reset to the active state.When VCC returns to an in-tolerance condition, the reset signal is kept in the act

Features

Automatically restarts a microprocessor after power failure.
Maintains reset for 150 ms after VCC returns to an in-tolerance condition.
Reduces need for discrete components.
Precision temperature-compensated voltage reference and voltage sensor.
Low-cost TO-92 or space saving surface mount SOT-23 packages available.
Push-Pull output for low current operation.
Operating temperature -40°C to +85°C PIN.
