PI6CB332004A - 4-Output Low-Power Fanout Clock Buffer

Name: PI6CB332004A
SKU: PI6CB332004A-1568462

DIODES

The PI6CB332004A by DIODES is a 4-Output Low-Power Fanout Clock Buffer. Below is the official datasheet preview.

Datasheet Details

Part number	PI6CB332004A
Manufacturer	DIODES
File Size	1.30 MB
Description	4-Output Low-Power Fanout Clock Buffer
Datasheet	PI6CB332004A-DIODES.pdf
Additional preview pages of the PI6CB332004A datasheet.

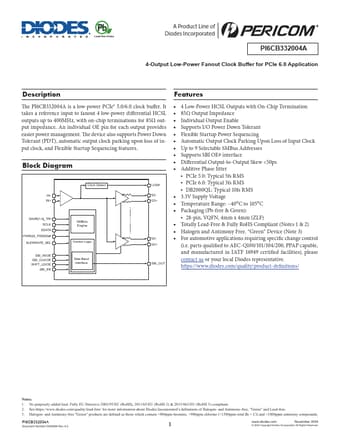

The PI6CB332004A is a low-power PCIe® 5.0/6.0 clock buffer. It takes a reference input to fanout 4 low-power differential HCSL outputs up to 400MHz, with on-chip terminations for 85Ω output impedance. An individual OE pin for each output provides easier power management. The device also supports Power Down Tolerant (PDT), automatic output clock parking upon loss of input clock, and Flexible Startup Sequencing features. Block Diagram ININ+ SADR[1:0]_TRI SCLK SDATA PWRGD_PWRDN# SLEWRATE_SEL SBI_.
