PI6CB33802 - Very-Low-Power 8-Output PCIe Clock Buffer

Diodes

The PI6CB33802 by Diodes is a Very-Low-Power 8-Output PCIe Clock Buffer. Below is the official datasheet preview.

📥 Download Datasheet

PI6CB33802 Very-Low-Power 8-Output PCIe Clock Buffer by Diodes - Datasheet Preview — Official preview page of the **PI6CB33802** Very-Low-Power 8-Output PCIe Clock Buffer datasheet (Diodes).

Datasheet Details

Part number	PI6CB33802
Manufacturer	DIODES
File Size	1.12 MB
Description	Very-Low-Power 8-Output PCIe Clock Buffer
Datasheet	PI6CB33802-Diodes.pdf

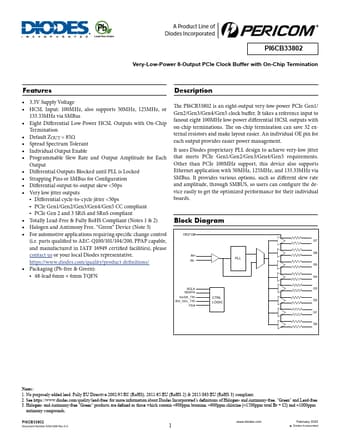

Additional preview pages of the PI6CB33802 datasheet.

PI6CB33802 Product details

Description

yy 3.3V Supply Voltage yy HCSL Input: 100MHz, also supports 50MHz, 125MHz, or 133.33MHz via SMBus yy Eight Differential Low-Power HCSL Outputs with On-Chip Termination yy Default ZOUT = 85Ω yy Spread Spectrum Tolerant yy Individual Output Enable yy Programmable Slew Rate and Output Amplitude for Each Output yy Differential Outputs Blocked until PLL is Locked yy Strapping Pins or SMBus for Configuration yy Differential output-to-output skew
